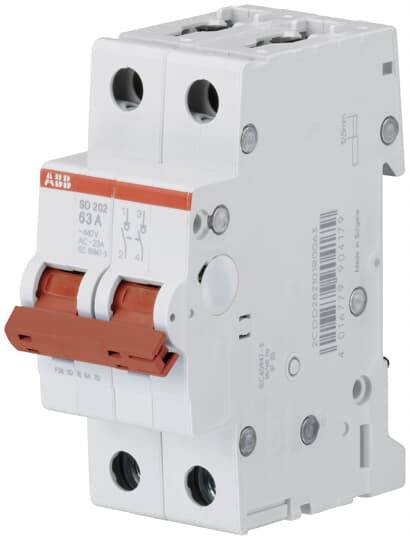

Grey 2-pin 63 A 2 makers ABB 2CDD282101R0063
Product type
Circuit breakers
Number of pins
2
Nominal current - rounded value
63 A
Contact type
2 makers
Operating voltage
12 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Color of the dome: Gray
- Lamp base: -
- Voltage type AC/DC
- Max. Lamp power: -
- Number of contacts as changer: 0
- Width in division units: 2
- Installation depth 69
- Rated current 63
- Rated breaking capacity: -
- Min Rated voltage 12
- Forced separation (according to DIN VDE 0113): Yes
- Protection class (IP): IP20
- Number of poles: 2
- Light bulb: -
- With signal lamp: No.
- Short circuit resistance (ICW) 25
- Switching function: Off switch
- Number of contacts as NC contact: 0
- Number of contacts as NO contact: 2
- Rated voltage 440
- Product type
Circuit breakers
- Contact type
2 makers
- Operating voltage
12 V
- Factory colour
Grey
- Number of pins
2
- Nominal current
63 A
- Nominal current - rounded value
63 A
- No. of partitions
2
- Depth
69 mm
AC/DC
FALSE
69 mm
63 A
440 V
2
2
IP20
0
2
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2318388 Grey 2-pin 63 A 2 makers ABB 2CDD282101R0063
User & Safety Instructions
User & Safety Instructions 2318388 Grey 2-pin 63 A 2 makers ABB 2CDD282101R0063
Description
The SD 200 extends the tried and tested system pro M compact® with switch disconnectors. The series is available in 1 to 4-pole versions with rated currents from 16 to 63 A and have isolating characteristics according to DIN EN 60947-3. The SD 200 opens up new possibilities with a rated voltage of 253/440 V AC, a conditional short-circuit resistance of 25 kA, cylinder lift terminal with 2 clamping points and rear plug protection. The “Real CPI” switch position indicator clearly indicates the switching state of the device. A clear full compatibility with all MCB accessories makes it unique in its field.
