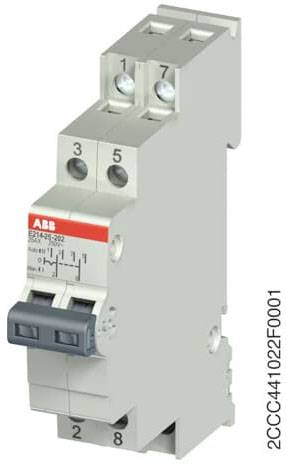

Group switch Grey 2-pin 25 A 2 change-overs ABB 2CCA703031R0001
Product type
Group switch
Number of pins
2
Nominal current - rounded value
25 A
Contact type
2 change-overs
Operating voltage
250
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Color of the dome: Gray
- Lamp base: -
- Voltage type: AC
- Max. Lamp power: -
- Number of contacts as changer: 2
- Width in division units: 1
- Installation depth 68
- Rated current 25
- Rated breaking capacity: -
- Min Rated voltage 24
- Forced separation (according to DIN VDE 0113): Yes
- Protection class (IP): IP20
- Number of poles: 2
- Light bulb: -
- With signal lamp: No.
- Short circuit resistance (ICW): 3
- Switching function: Group switch
- Number of contacts as NC contact: 0
- Number of contacts as NO contact: 0
- Rated voltage 250
- Product type
Group switch
- Contact type
2 change-overs
- Operating voltage
250
- Factory colour
Grey
- Number of pins
2
- Dim
(W x D) 18 mm x 68 mm
- Nominal current
25 A
- Nominal current - rounded value
25 A
- No. of partitions
1
- Width
18 mm
- Depth
68 mm
On/Off switch
0
0
25 A
2
IP20
2
Screw connection
Rocker lever
TRUE
TRUE
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2332250 Group switch Grey 2-pin 25 A 2 change-overs ABB 2CCA703031R0001
User & Safety Instructions
User & Safety Instructions 2332250 Group switch Grey 2-pin 25 A 2 change-overs ABB 2CCA703031R0001
Description
The group switches can be used to control an emergency power supply. They are characterized by simple handling, simple mounting and optimum functionality. For rated current strength 16/25 A and rated voltage 250VAC. With 1/2 changer in 9mm or 18mm width.
