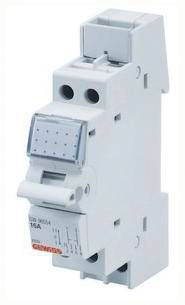

Group switch White 1-pin 10 mm² 16 A 1 change-over 250 V Gewiss 3498945
Product type
Group switch
Nominal voltage
250 V
Number of pins
1
Nominal current - rounded value
16 A
Contact type
1 change-over
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Group switch
- Contact type
1 change-over
- Operating voltage
250 V
- Nominal voltage
250 V
- Factory colour
White
- Cross section
10 mm²
- Number of pins
1
- Nominal current
16 A
- Nominal current - rounded value
16 A
- No. of partitions
1
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2226615 Group switch White 1-pin 10 mm² 16 A 1 change-over 250 V Gewiss 3498945
User & Safety Instructions
User & Safety Instructions 2226615 Group switch White 1-pin 10 mm² 16 A 1 change-over 250 V Gewiss 3498945
Description
Group switch according to EN 60669-1 as series installation device. The shift lever can be sealed when switched off and on or locked with a lever lock (order additional separate) for pre-lock. Connection (max.): Flexible 6 qmm, rigid 10 qmm.
