Grün Pumpen ES1 Fass Barrel pump 110 l/min 10 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

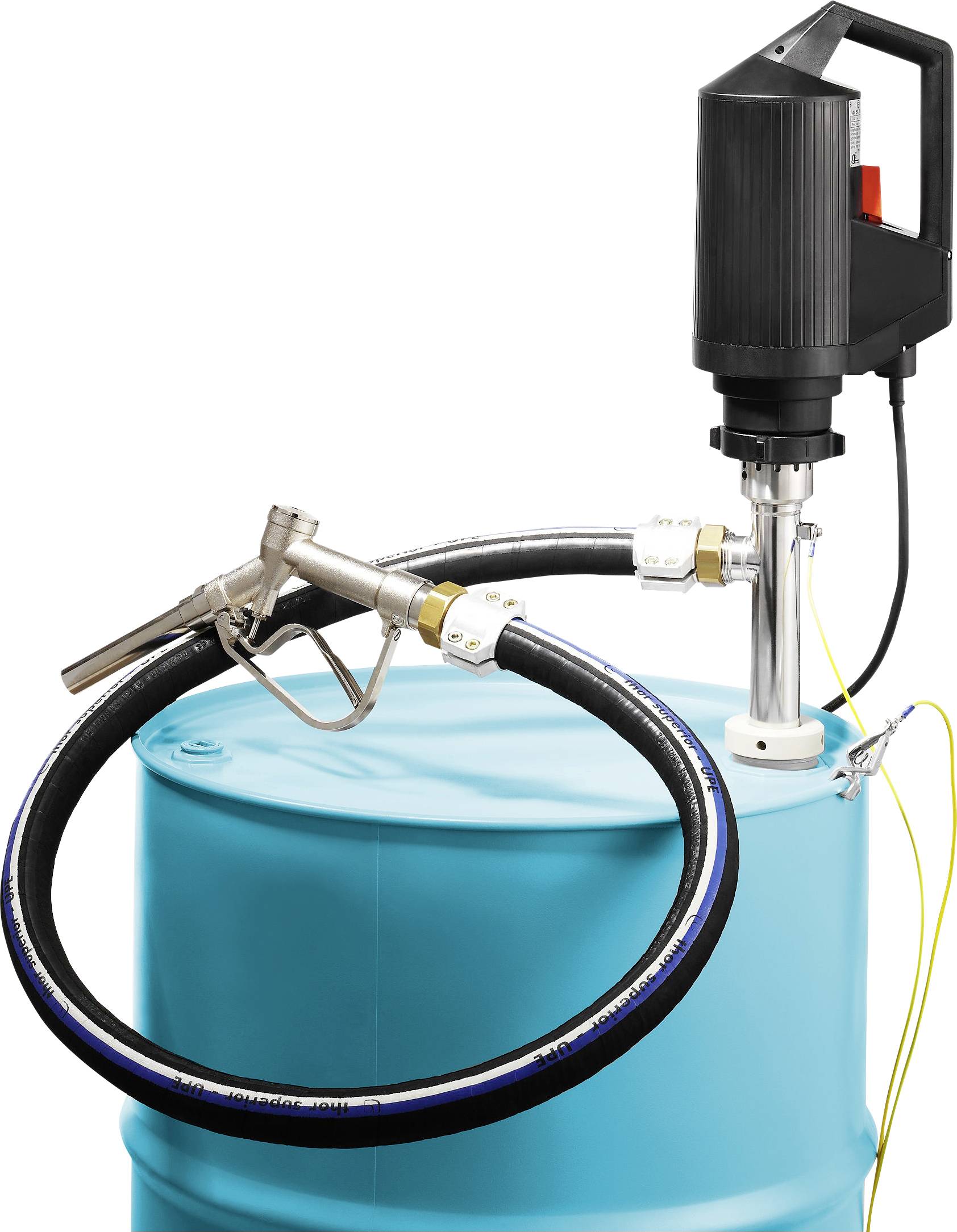

Barrel pump exclusive set ES1 Fass
- For frequent use and long operating time
- For flammable liquids, weak acids and alkalis
Technical specifications
- Product type
Barrel pump
- Max. delivery head
10 m
- Max. feed rate
110 l/min
- Max. discharge pressure
1 bar
- Operating voltage
230 V
- Power (P2)
700 W
- Pressure connection
G1¼"
- Immersion depth
1 m
IP45
Documents & Downloads
Datasheet
Datasheet 3729119 Grün Pumpen ES1 Fass Barrel pump 110 l/min 10 m
User & Safety Instructions
User & Safety Instructions 3729119 Grün Pumpen ES1 Fass Barrel pump 110 l/min 10 m
User & Safety Instructions 3729119 Grün Pumpen ES1 Fass Barrel pump 110 l/min 10 m
Description
For frequent use and long operating time
For flammable liquids, weak acids and alkalis
This text is machine translated.
For flammable liquids, weak acids and alkalis
This text is machine translated.
Features
- Motor, pump unit, 2m hose, hose connection, nozzle Potential compensating cable, barrel adapter, wall bracket
Hints
Max. flow 110 l/min
Max. Delivery height (H max.): 10m
Voltage: Input 230V/50Hz
Nominal current: 4.5A
IP 54 protection
Power: 700W
