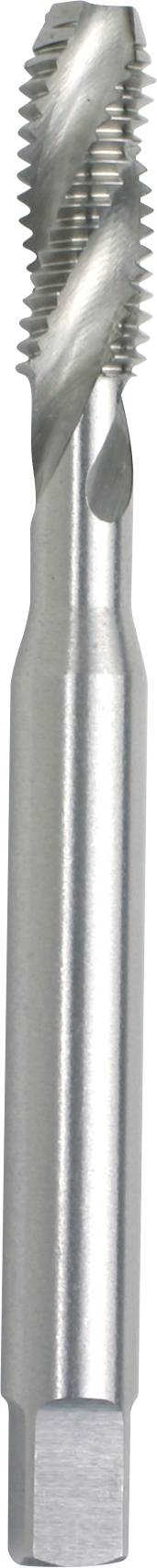

GSR B01015130 CNC tap metric M3 0.5 Right hand cutting DIN 371 HSS-E Shape C 1 pc(s)
EAN:
Part number:
Item no:
Product type
CNC tap
Thread spec
metric
DIN standard
DIN 371
Thread size
M3
Thread handedness
Right hand cutting
Highlights & Details
Machine tap drill HSSE M3 DIN 371 shape C/RSP 35°
- Nominal dimension M 3
- Total length without tip in mm: 56
- DIN standard DIN 371
- Tolerance class: 6H
- Material HSSE
- Shaft DM 3.5
- Working length: 11
- Groove shape RSP 35°
- Slope in mm: 0.5
- Hole type: Salo
- Thread depth:3xD
- Square nominal dimensions according to DIN 10: 2.7
- Core diameter: 2.5
Technical specifications
- Product type
CNC tap
- Thread spec
metric
- DIN standard
DIN 371
- Thread size
M3
- Gradient
0.5
- End cut shape
Shape C
- Thread handedness
Right hand cutting
- Thread length
11 mm
- Tap hole size
2.5 mm
- Material
HSS-E
- Material properties
cut
- Length
56 mm
- Square neck
2.7 mm
- Features
polished
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3730626 GSR B01015130 CNC tap metric M3 0.5 Right hand cutting DIN 371 HSS-E Shape C 1 pc(s)
Description
Machine tap drill for blind holes according to DIN 371 (reinforced shaft) with RSP35° right-hand spiral groove for reliable chip removal upward. Annotate form C allows threads up to close to the base. HSSE (cobalt-alloy) for high heat hardness and wear resistance, especially in tough/rust-free steels. Precision-ground, right-hand cut, tolerance 6H. For machine/CNC use with emulsion or cutting oil; square according to DIN for secure transmission of force.
This text is machine translated.
This text is machine translated.
