GSR B01015230 CNC tap metric M10 1.5 DIN 371 HSS-E 1 pc(s)
EAN:
Part number:
Item no:
Product type
CNC tap
Thread spec
metric
DIN standard
DIN 371
Thread size
M10
Material
HSS-E
Highlights & Details
Machine tap HSSE M10 DIN 371 shape C/RSP 35°
- Nominal dimension M 10
- Total length without tip in mm: 100
- DIN standard DIN 371
- Tolerance class: 6H
- Material HSSE
- Shaft DM 10.0
- Working length: 24
- Groove shape RSP 35°
- Slope in mm: 1.5
- Hole type: Salo
- Thread depth:3xD
- Square nominal dimensions according to DIN 10: 8.0
- Core diameter: 8.5
Technical specifications
- Product type
CNC tap
- Thread spec
metric
- DIN standard
DIN 371
- Thread size
M10
- Gradient
1.5
- Material
HSS-E
- Length
100 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3730631 GSR B01015230 CNC tap metric M10 1.5 DIN 371 HSS-E 1 pc(s)
Description

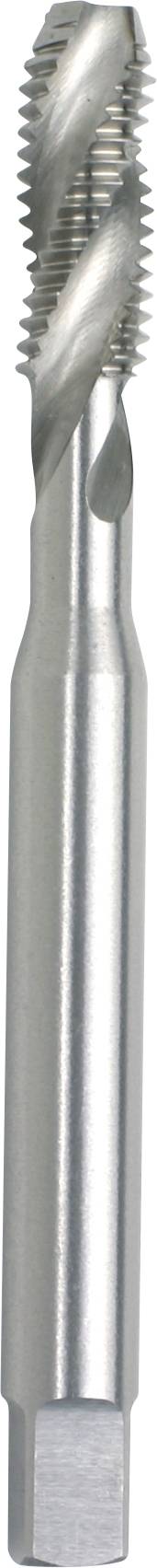

Machine tap drill for blind holes according to DIN 371 (reinforced shaft) with RSP35° right-hand spiral groove for reliable chip removal upward. Annotate form C allows threads up to close to the base. HSSE (cobalt-alloy) for high heat hardness and wear resistance, especially in tough/rust-free steels. Precision-ground, right-hand cut, tolerance 6H. For machine/CNC use with emulsion or cutting oil; square according to DIN for secure transmission of force.
