GUDE 2302-1 Socket Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Güde 2302-1 Remote Power controller black
- 2 W
- Current (maximum): 16 A.
- 10.100 Mbit/s
- Black
Technical specifications
- Product type
Socket
- Outlets
4
- Factory colour
Black
- Dim
(W x H x D) 105 x 70 x 90 mm
- Width
105 mm
- Height
70 mm
- Depth
90 mm
- Content
1 pc(s)
- Load (max.)
16 A
- 10/100/1000 Mbps ports
1 x
- Input voltage
230 V
- Weight
300 g
- UKCA
yes
- Operating temperature (T-T)
0 - 50 °C
- RS-232 ports
1
- Output power (max)
2 W
- On/off switch
yes
- Operating relative humidity (H-H)
0 - 95 %
- Storage temperature (T-T)
-20 - 70 °C
Documents & Downloads
Datasheet
Datasheet 3797321 GUDE 2302-1 Socket Black
User & Safety Instructions
User & Safety Instructions 3797321 GUDE 2302-1 Socket Black
Description

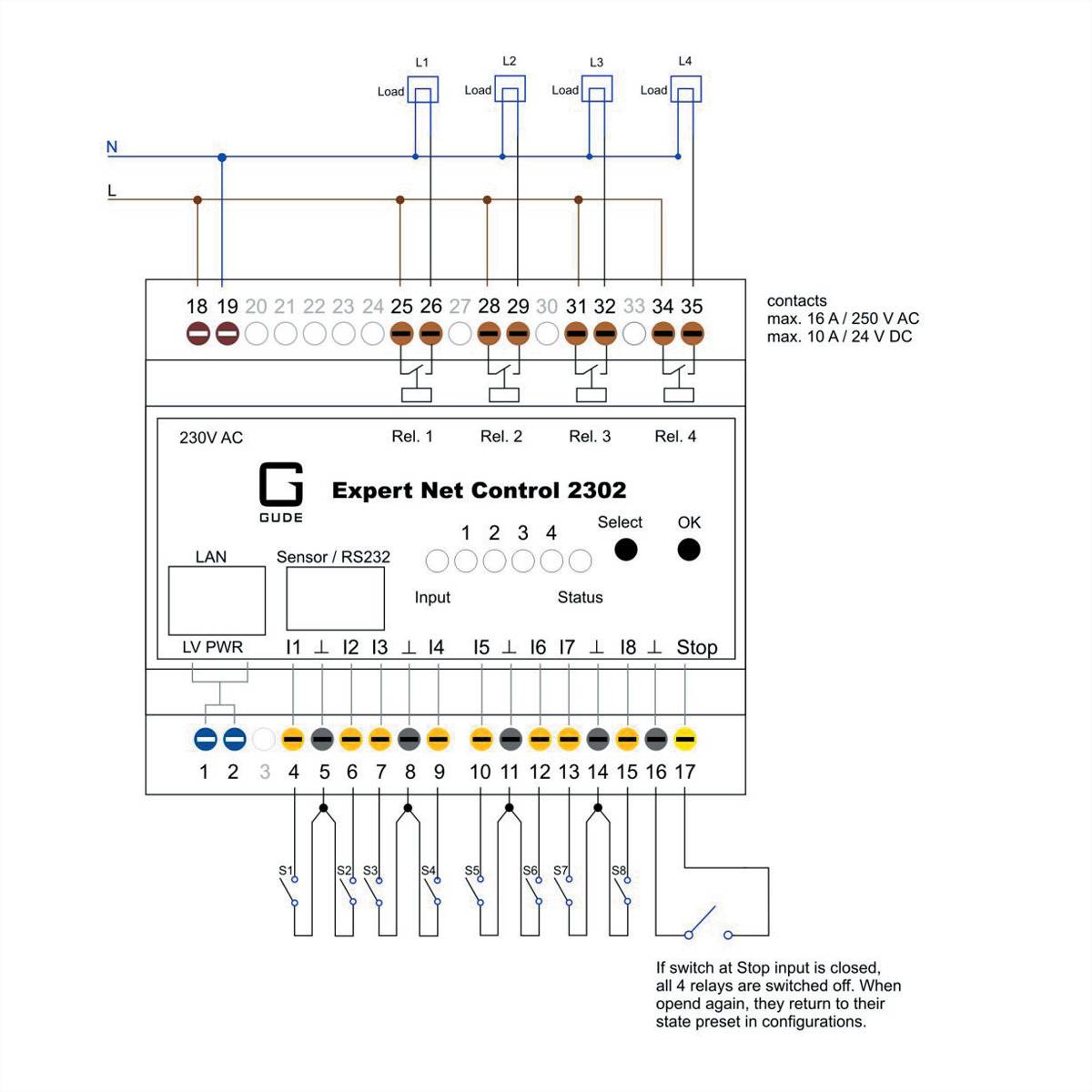

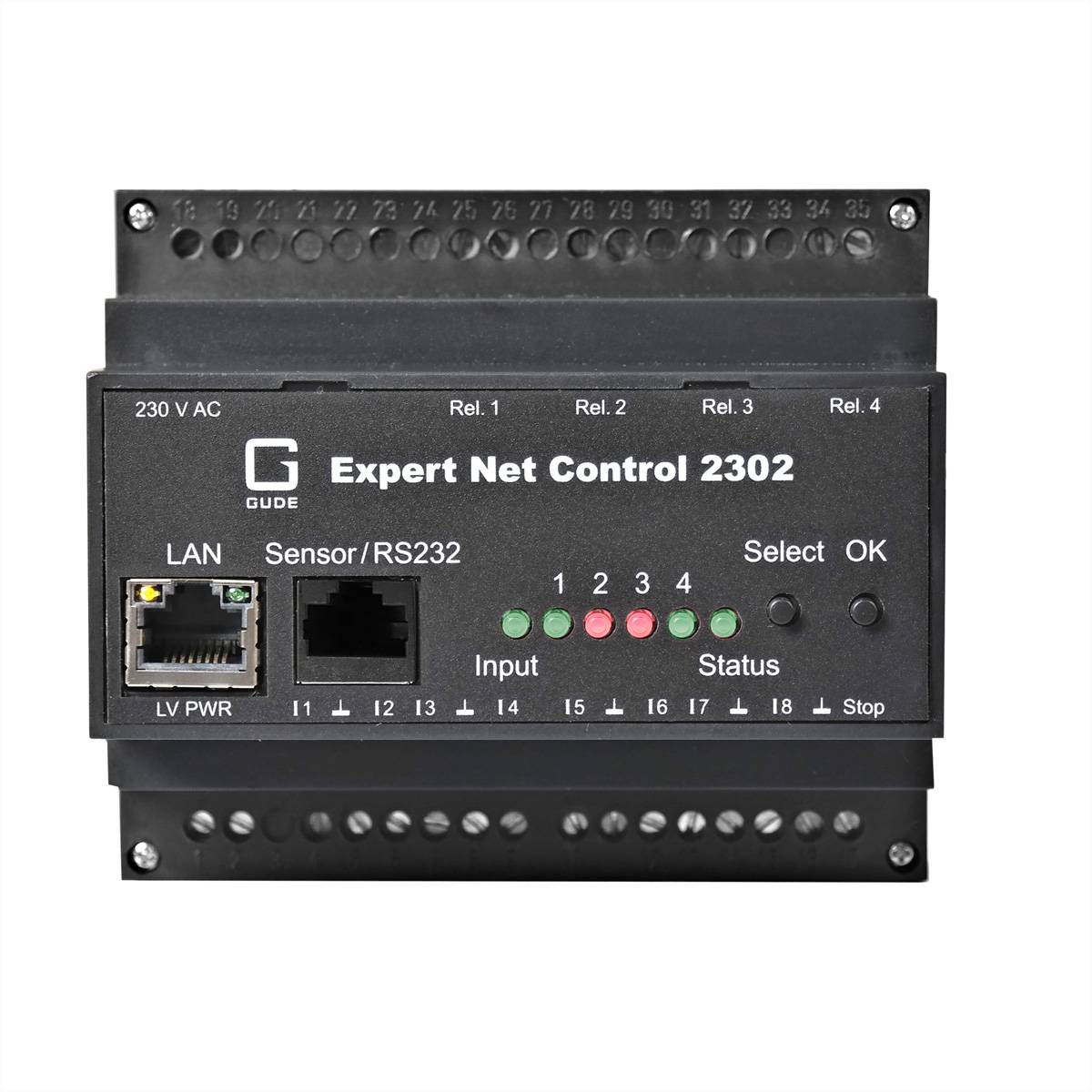

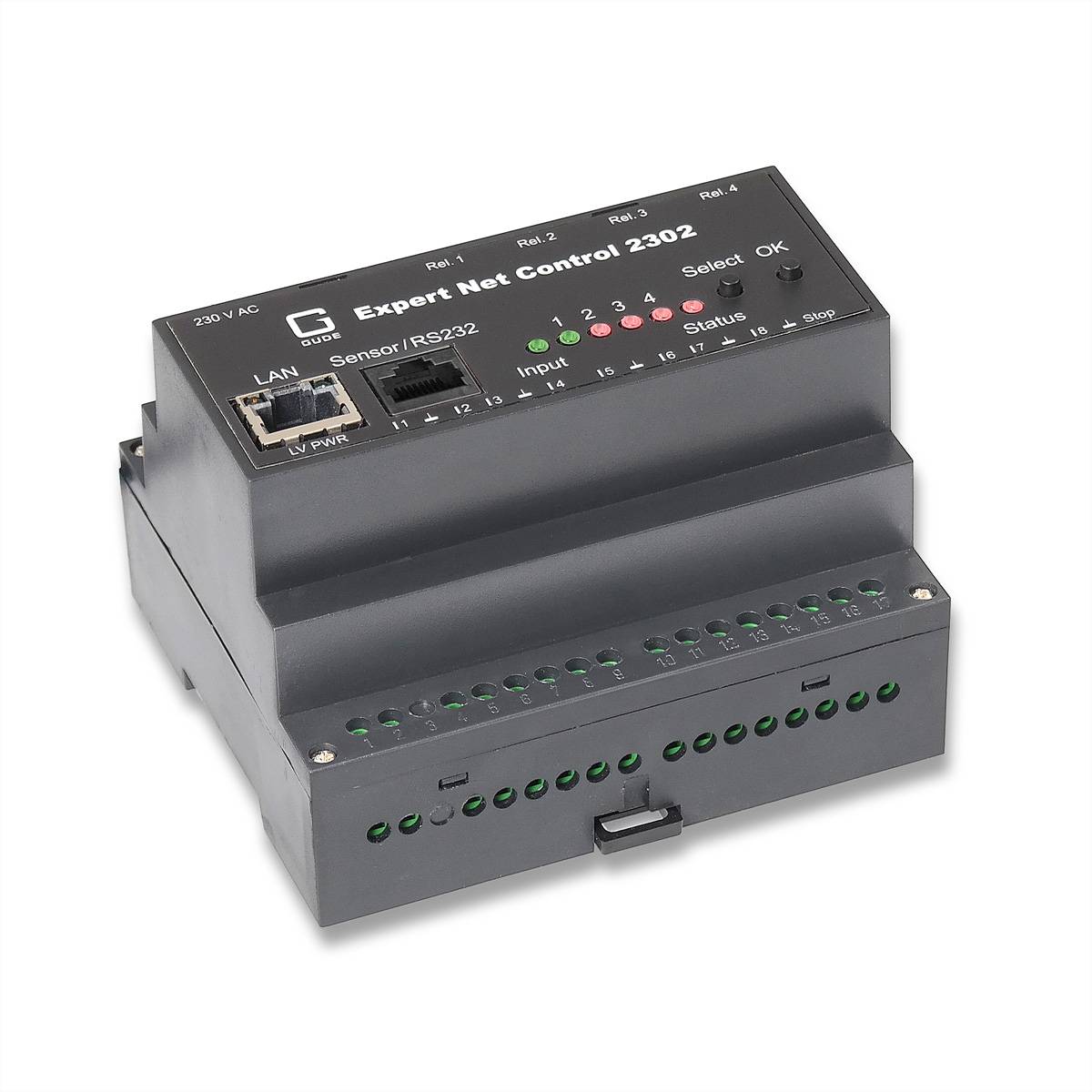

Expert Net Control 2302-1 is a remote I/O system offers various possibilities of remote control over a TCP/IP network. The device has four individually switchable, potential-free relay outputs and eight passive signal inputs for querying NO/NC devices (e.g. smoke detectors and door contacts). Thanks to the sensor connection (RJ45), the telecontrol system can be expanded with optional sensors and ambient temperature, air humidity, air pressure and leakage can be monitored. Along with communication via Telnet, radius and Modbus TCP, modern security standards like SNMPv3, SSL and IPv6 are supported.
This text is machine translated.
This text is machine translated.
Features
- 4 relay outputs
- Switching through set sensor thresholds
- 8 passive signal inputs
- Event-based notifications
- Connection for optional sensors (RJ45)
- IPv6, SNMPv3, SSL, Telnet, radius, ModBUS TCP
- Free Smartphone APP for remote access
Scope of delivery
- Plug adapter, instructions, CD
