GUDE 7209 19 inch Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Temperature/air humidity/signal sensor for GUDE devices with RJ45 sensor connector (RJ45 socket) for reliable monitoring of the environment...
- Proactive temperature and air humidity monitoring
- Monitor your installation environment in real time
- Connection to existing RJ45 cables
- Cable length up to 40 m.
- Plug-and-play sensor is detected automatically
Technical specifications
- Product group: Socket strips
- Product type: IP sensor unit
- Colour, black
- Function: Sensor unit
- Design: Desktop
- On/off switch: No.
- Material (housing): Plastic
- Colour (housing): Black
- Connector RJ45 port
- Min. Operating temperature -20 °C
- Max. operating temperature: 80 °C
- Height: 35 mm
- Width 20 mm
- Depth: 42 mm
- Weight: 29 g
- Packaging height 50 mm
- Package width 190 mm
- Packaging depth 210 mm
- Package weight: 0,086 kg
- Gross weight: 0.086
- Suitable for server rack cabinet (inch)
19 inch
- Dim
(W x H x D) 20 x 35 x 42 mm
- Content
1 pc(s)
- Factory colour
Black
- Width
20 mm
- Height
35 mm
- Depth
42 mm
- Interfaces
RJ45
- Weight
0.086
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797311 GUDE 7209 19 inch Black
User & Safety Instructions
User & Safety Instructions 3797311 GUDE 7209 19 inch Black
Description
Temperature/air humidity/signal sensor for GUDE devices with RJ45 sensor connector (RJ45 connector) for reliable environmental monitoring Sensors 7205 to 7210 are external temperature, air humidity and air pressure sensors, which have optionally two integrated signal inputs. With the combined sensors the corresponding ambient values are measured and evaluated simultaneously. An RJ45 socket is integrated instead of a permanently connected cable. This allows the sensors to be connected with a shielded LAN cable of up to 40 m. It can therefore be easily positioned close to the installation for surveillance purposes. .
This text is machine translated.
Scope of delivery

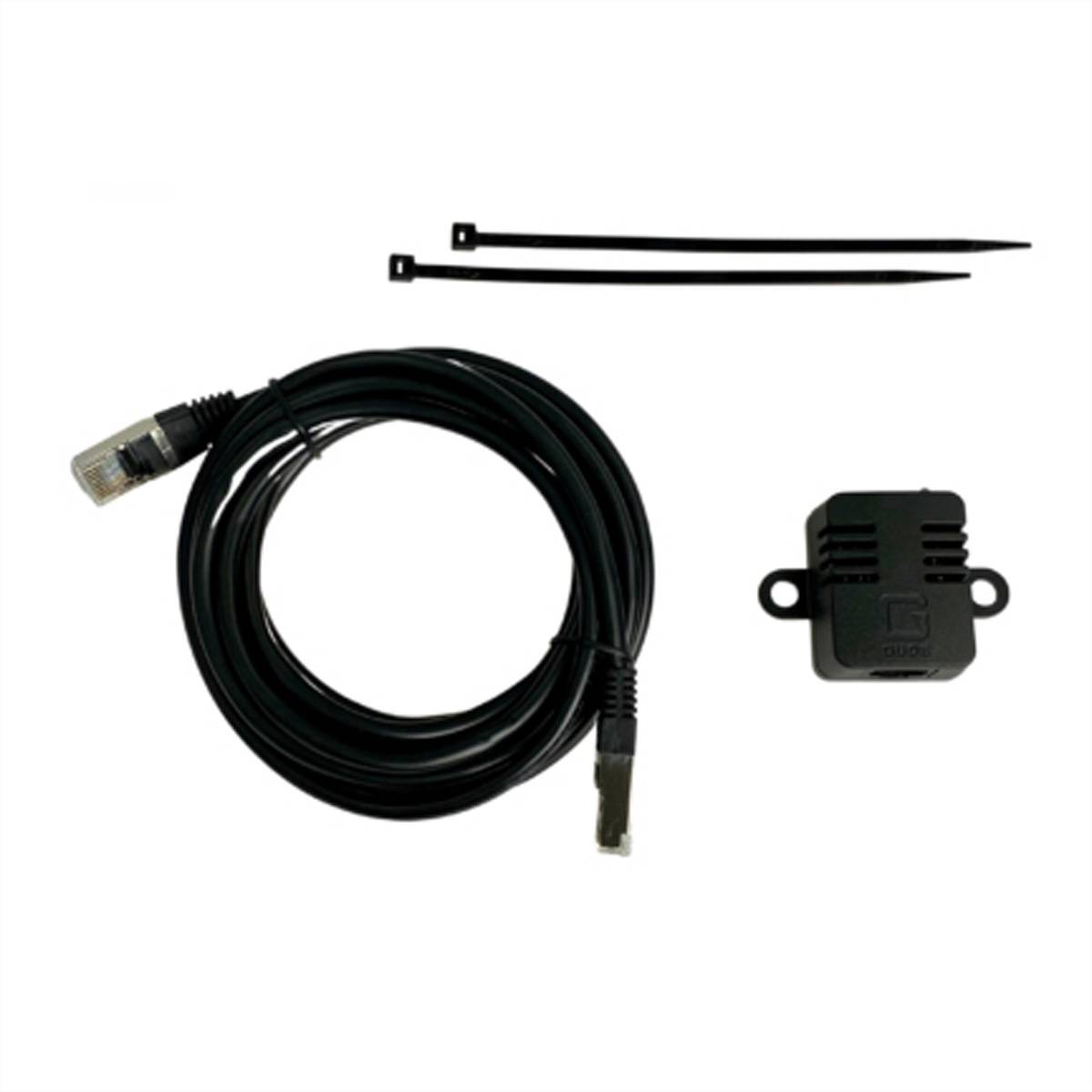

- GUDE 7209 temperature/air humidity sensor with 2 signal inputs
