1/3
GUDE 7210 19 inch Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Temperature/air humidity/air pressure signal sensor for GUDE devices with RJ45 sensor connector (RJ45 socket) for reliable environmental monitoring...
- Proactive temperature, air humidity & air pressure monitoring
- Monitoring by querying NO/NC devices
- Monitor your installation environment in real time
- Connection to existing RJ45 cables
- Cable length up to 40 m.
Technical specifications
- Product group: Socket strips
- Product type: IP sensor unit
- Colour, black
- Function: Sensor unit
- Design: Desktop
- On/off switch: No.
- Material (housing): Plastic
- Colour (housing): Black
- Connector RJ45 port
- Min. Operating temperature -20 °C
- Max. operating temperature: 80 °C
- Height: 35 mm
- Width 20 mm
- Depth: 42 mm
- Weight: 29 g
- Packaging height 10 mm
- Package width 150 mm
- Packaging depth 150 mm
- Package weight: 0,078 kg
- Gross weight: 0.078
- Suitable for server rack cabinet (inch)
19 inch
- Dim
(L x W x H) 42 x 20 x 35 mm
- Cable length
40 m
- Content
1 pc(s)
- Factory colour
Black
- Width
20 mm
- Height
35 mm
- Length
42 mm
- Enclosure material
Plastic
- Connector
RJ45
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797312 GUDE 7210 19 inch Black
User & Safety Instructions
User & Safety Instructions 3797312 GUDE 7210 19 inch Black
Description

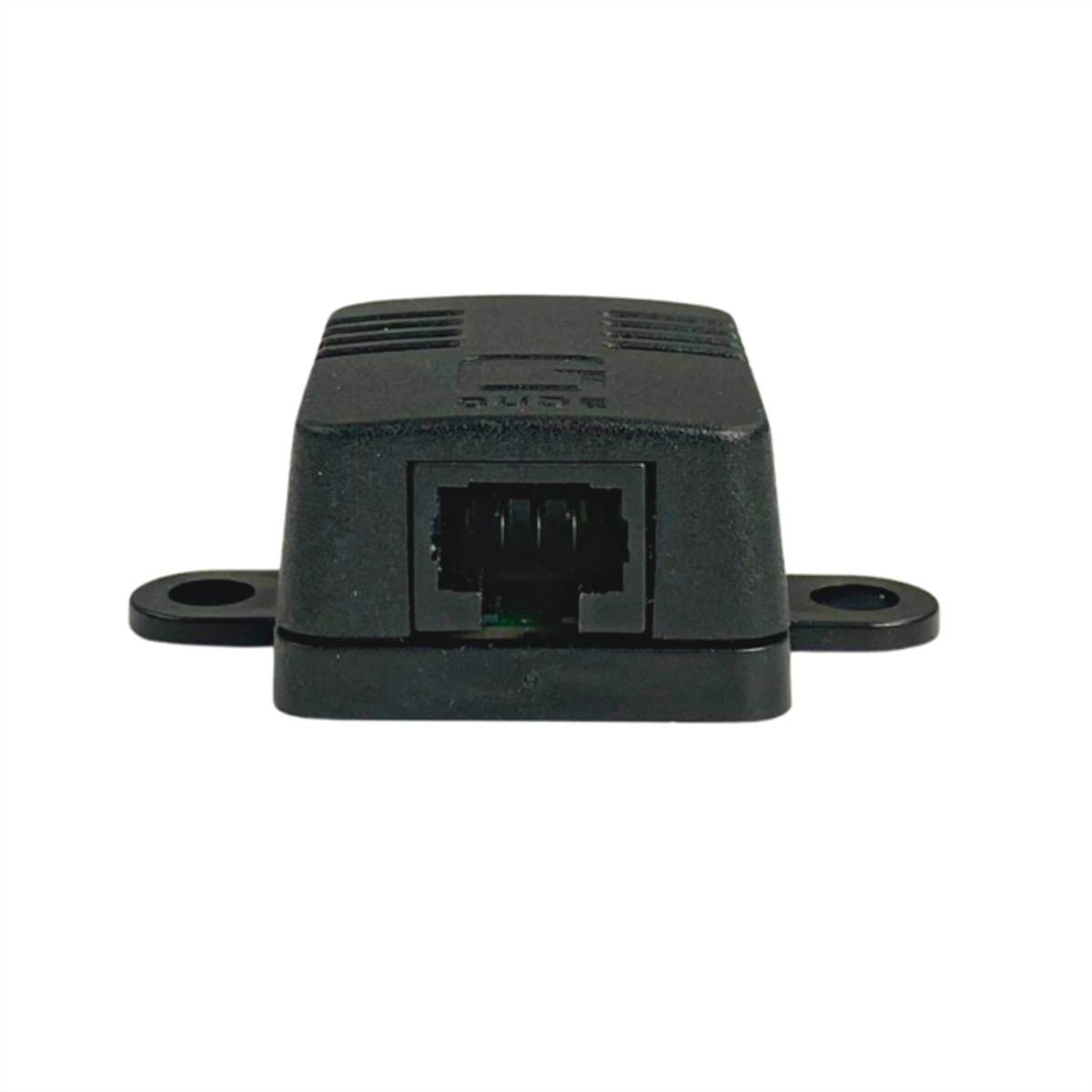

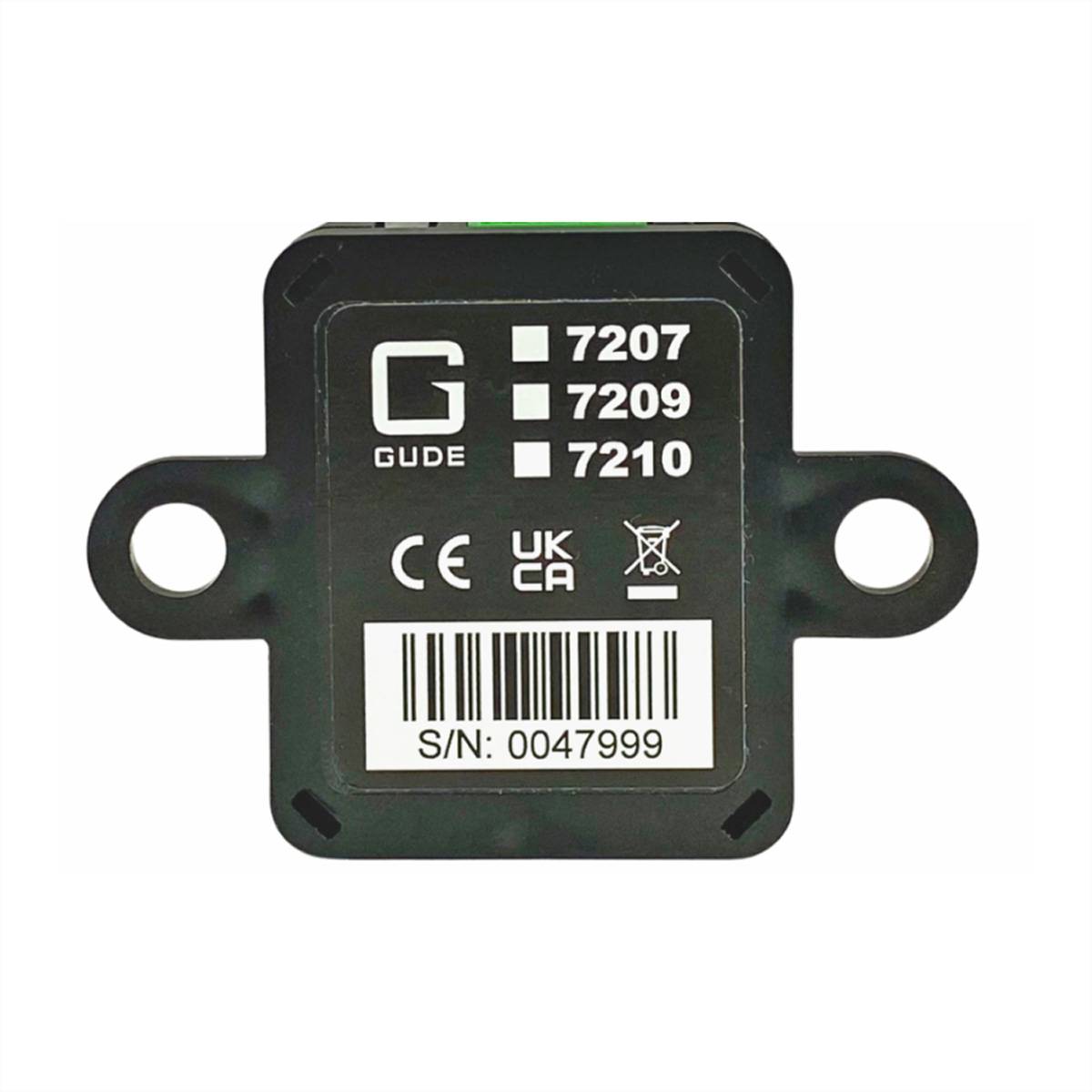

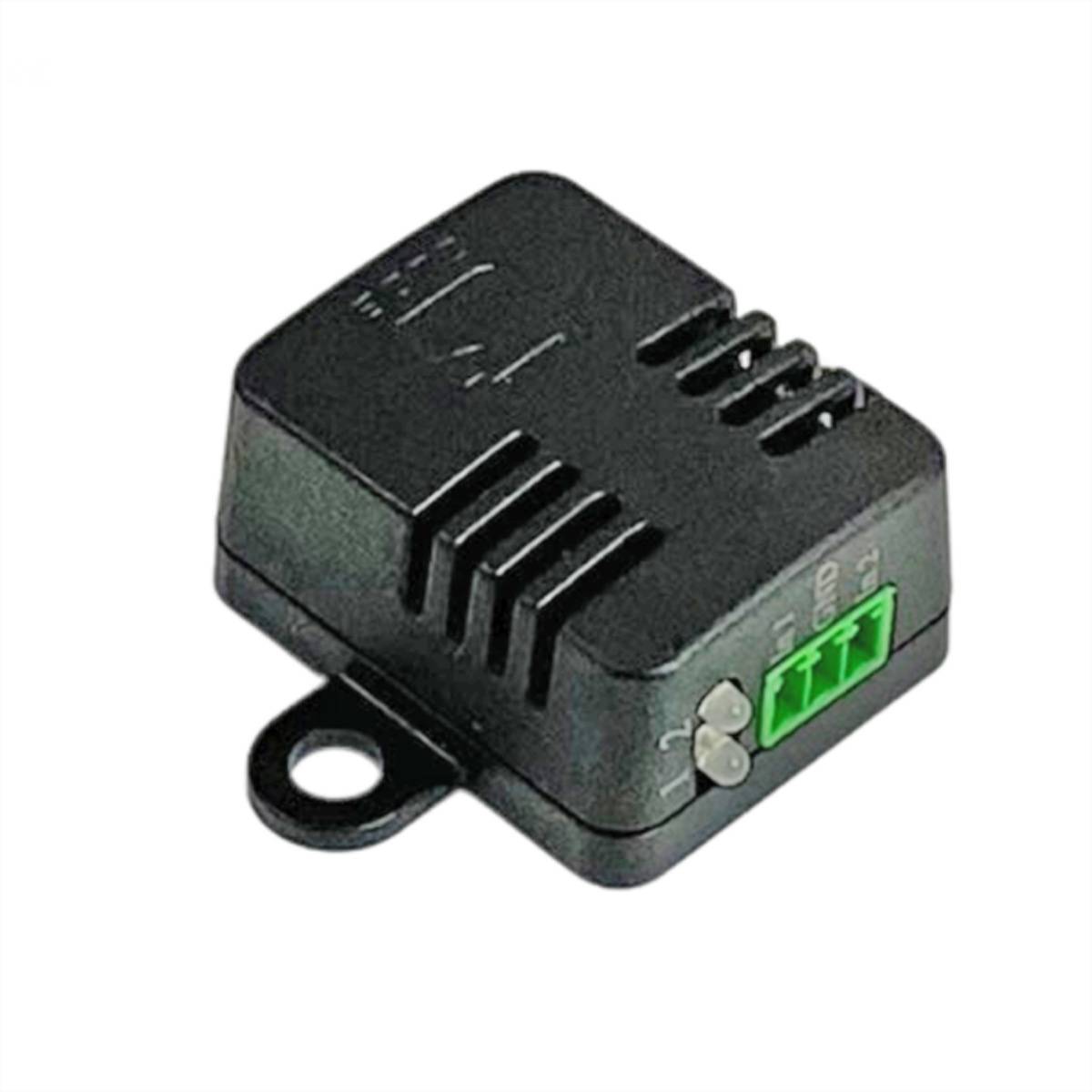

Temperature/air humidity/air pressure signal sensor for GUDE devices with RJ45 sensor connector (RJ45 connector) for reliable environmental monitoring Sensors 7205 to 7210 are external temperature, air humidity and air pressure sensors, which have optionally two integrated signal inputs. With the combined sensors the corresponding ambient values are measured and evaluated simultaneously. An RJ45 socket is integrated instead of a permanently connected cable. This allows the sensors to be connected with a shielded LAN cable of up to 40 m. It can therefore be easily positioned close to the installation for surveillance purposes. .
This text is machine translated.
Scope of delivery
- GUDE 7210 temperature/air humidity/air pressure sensor with 2 signal inputs
