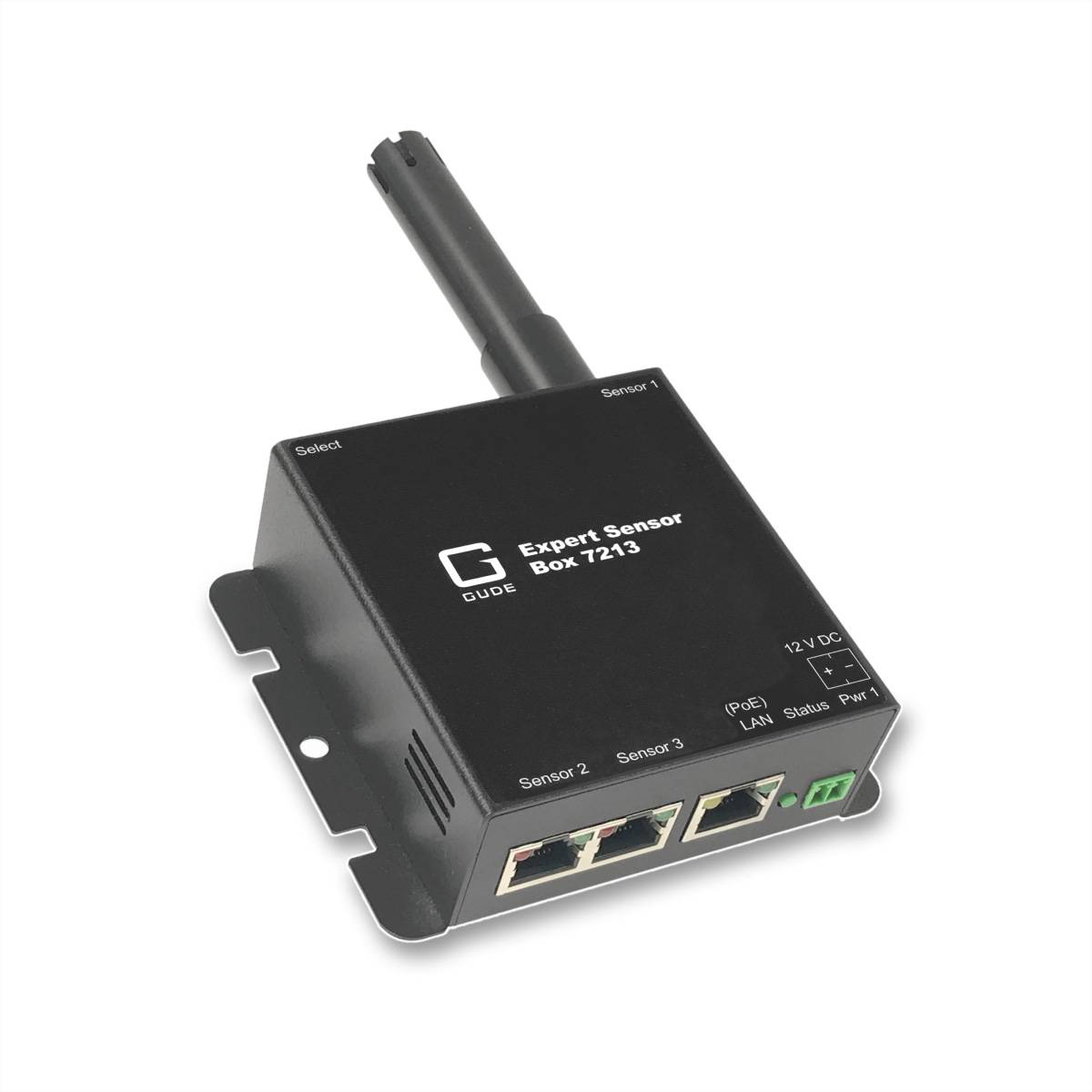

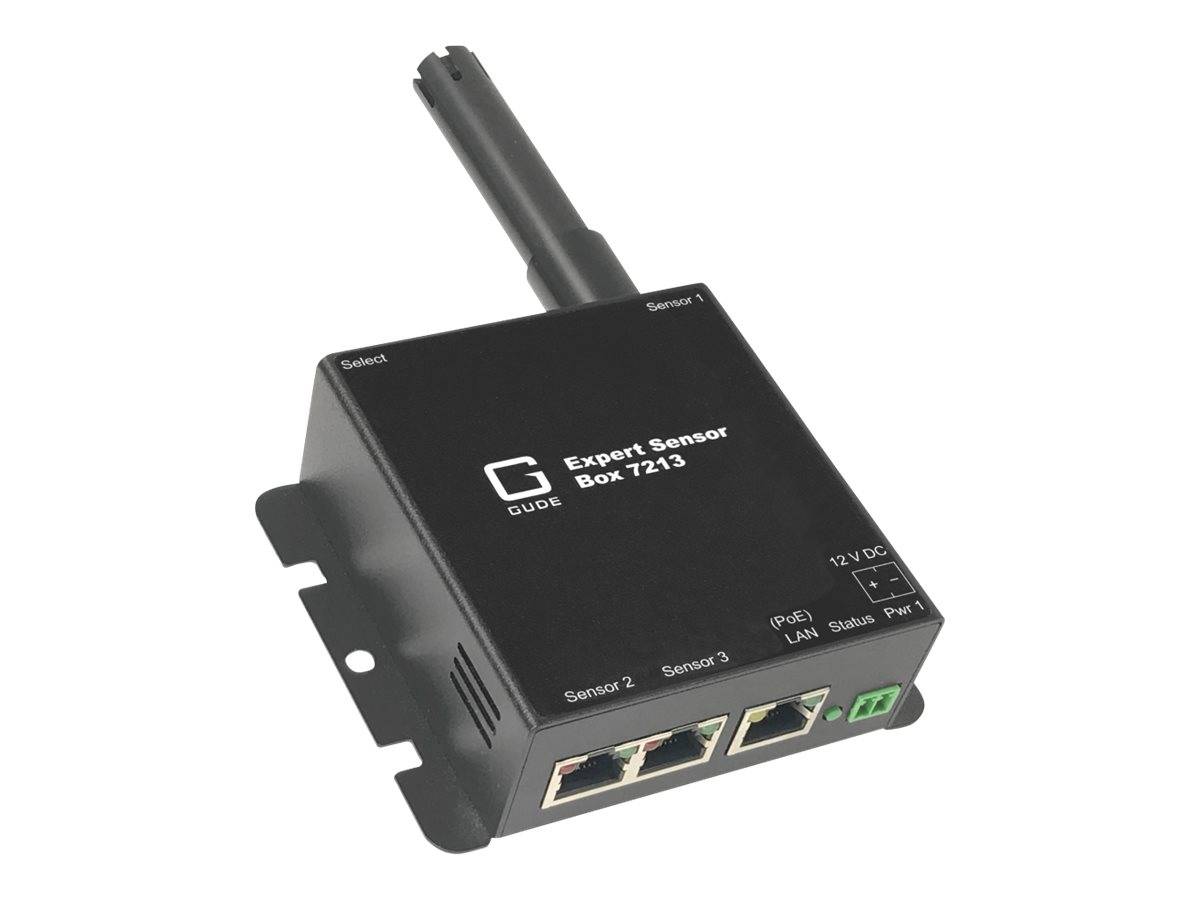

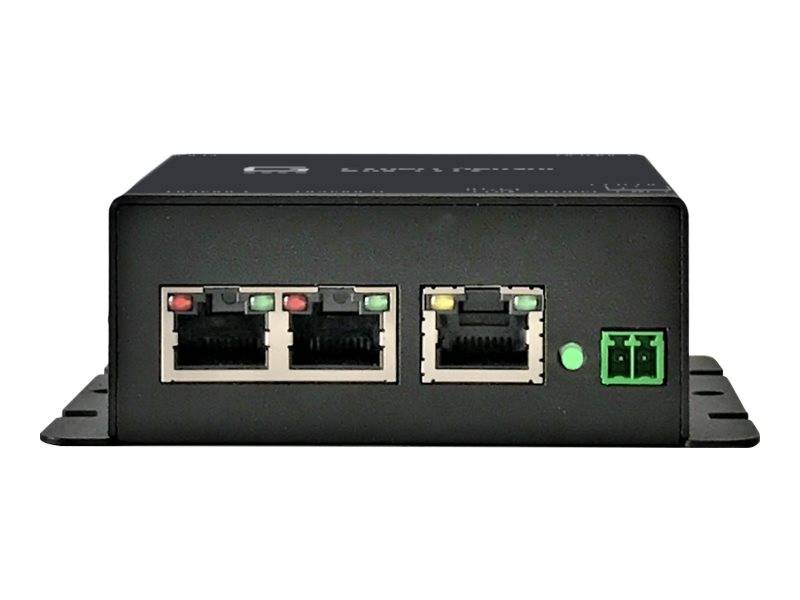

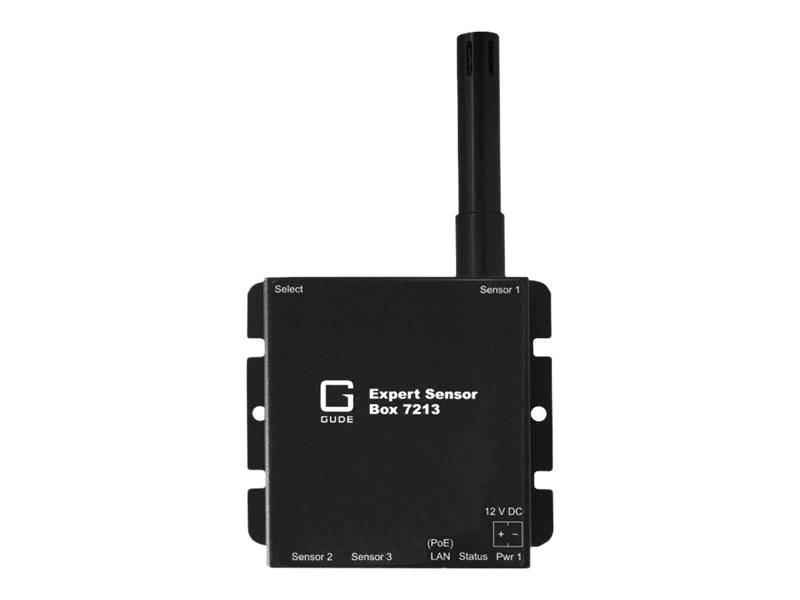

GUDE 7213-12 19 inch Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Grade 7213-12 Temperature & Humidity sensor Indoor Free standing Cable connected
- Free-standing temperature & humidity sensor
- Cable connected
- Inside
- Temperature range -20 – 80 oC
- Humidity measuring range 0 - 100%
- Standard interfaces RJ-45
Technical specifications
- Suitable for server rack cabinet (inch)
19 inch
- Dim
(W x H x D) 90 x 100 x 34 mm
- Content
1 pc(s)
- Factory colour
Black
- Width
90 mm
- Height
100 mm
- Depth
34 mm
- Type
Free standing
- Sensor type
Temperature & humidity sensor
- Transfer type
Corded
- Weight
300 g
- UKCA
yes
- Operating temperature (T-T)
0 - 50 °C
- Temperature measuring range
-20 - 80 °C
- Humidity measuring range
0 - 100 %
- Accuracy
0.6 °C
- Operating relative humidity (H-H)
0 - 95 %
- Storage temperature (T-T)
-20 - 80 °C
- Accuracy
6 %
Documents & Downloads
Datasheet
Datasheet 3797253 GUDE 7213-12 19 inch Black
User & Safety Instructions
User & Safety Instructions 3797253 GUDE 7213-12 19 inch Black
Description
Standalone LAN sensor for environment monitoring
The Expert Sensor Box 7213-series enables the environment monitoring of IT installations via TCP/IP networks. Three versions are available with fixed integrated sensors and two sensor connections for extended monitoring. Depending on the model, temperature, humidity and air pressure can be measured with the integrated sensors. The three sensor variants are also available as models with power supply via Power-over-Ethernet (PoE). Furthermore, the Expert Sensor Box 7213-series is equipped with SNMPv3, SSL and IPv6-enable and supports Telnet, Radius and Modbus TCP. The LAN sensors are also available in versions with I/O monitoring as Expert Sensor Box 7214 series.
This text is machine translated.
Features
- Gude Expert Sensor Box 7213-12 - device for keeping an eye on the environment
- Device Type : Device for environmental monitoring
- Form factor : DIN rail mounting possible
- Data Link Protocol : Ethernet, Fast Ethernet
- Power over Ethernet (PoE) support : PoE
- Dimensions (width x depth x height): 10 cm x 3.4 cm x 9 cm
- Weight: 300 g
Scope of delivery
- GUDE 721312 Expert LAN-Sensor for Temperature and Humidity, PoE
