GUDE 7313 19 inch Multicolour
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

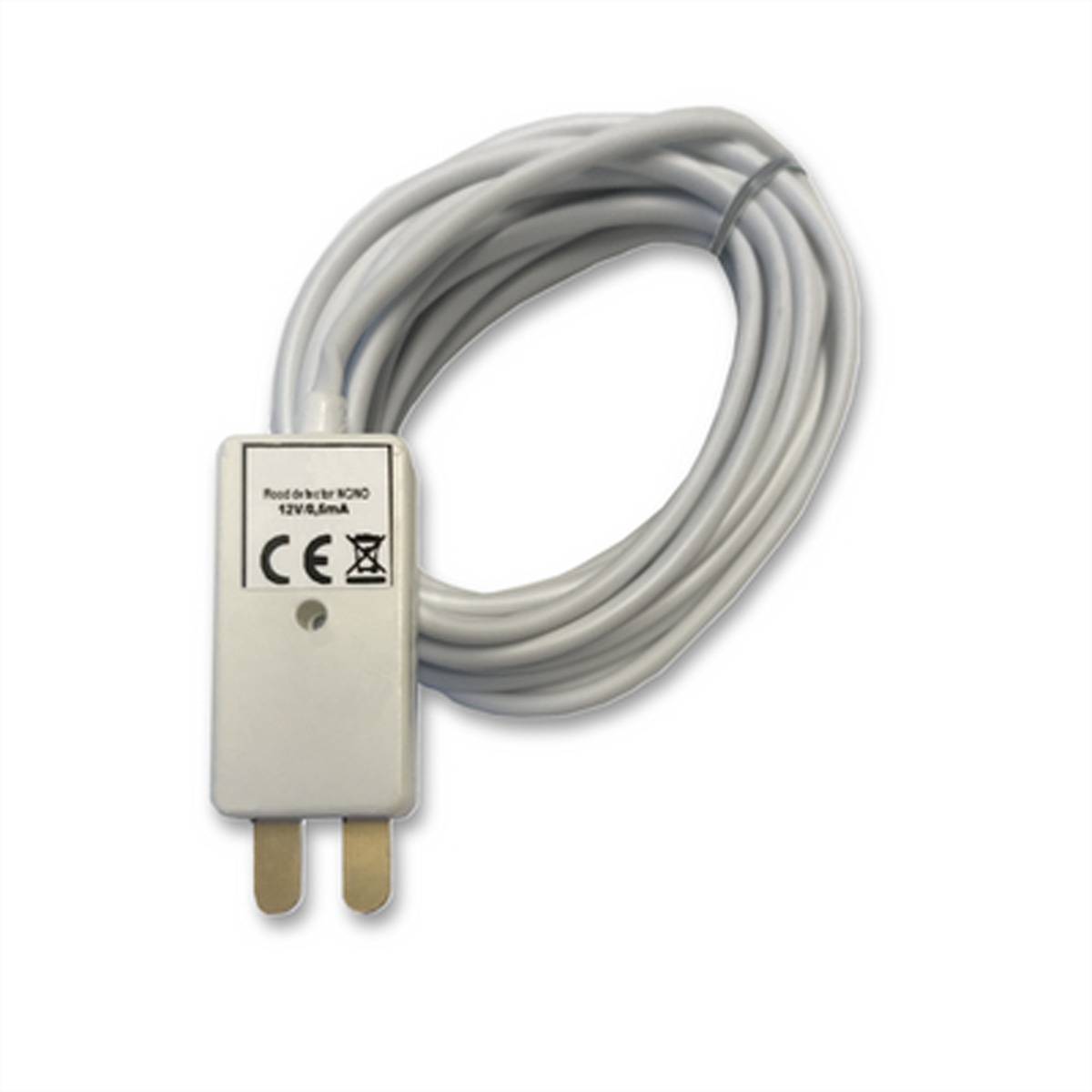

Gude 7313 water detector cable-bound
- Leakage sensor for monitoring flood
- Simple setup
- Cable length approx. 2.5 m
- Plastic housing
- For devices with industry-standard terminals
Technical specifications
- Suitable for server rack cabinet (inch)
19 inch
- Dim
(L x W x H) 2.5 m x 20 mm x 40 mm
- Cable length
2.50 m
- Content
1 pc(s)
- Factory colour
Multicolour
- Width
20 mm
- Height
40 mm
- Depth
10 mm
- Length
2.5 m
- Enclosure material
Plastic
- Temperature reading range (max.)
40 °C
- Temperature reading range (min.)
-10 °C
- Transfer type
Corded
- Weight
56 g
- UKCA
yes
- Operating temperature (T-T)
-10 - 40 °C
Documents & Downloads
Datasheet
Datasheet 3797322 GUDE 7313 19 inch Multicolour
User & Safety Instructions
User & Safety Instructions 3797322 GUDE 7313 19 inch Multicolour
Description
Flood sensors for devices with industrial clamp connection

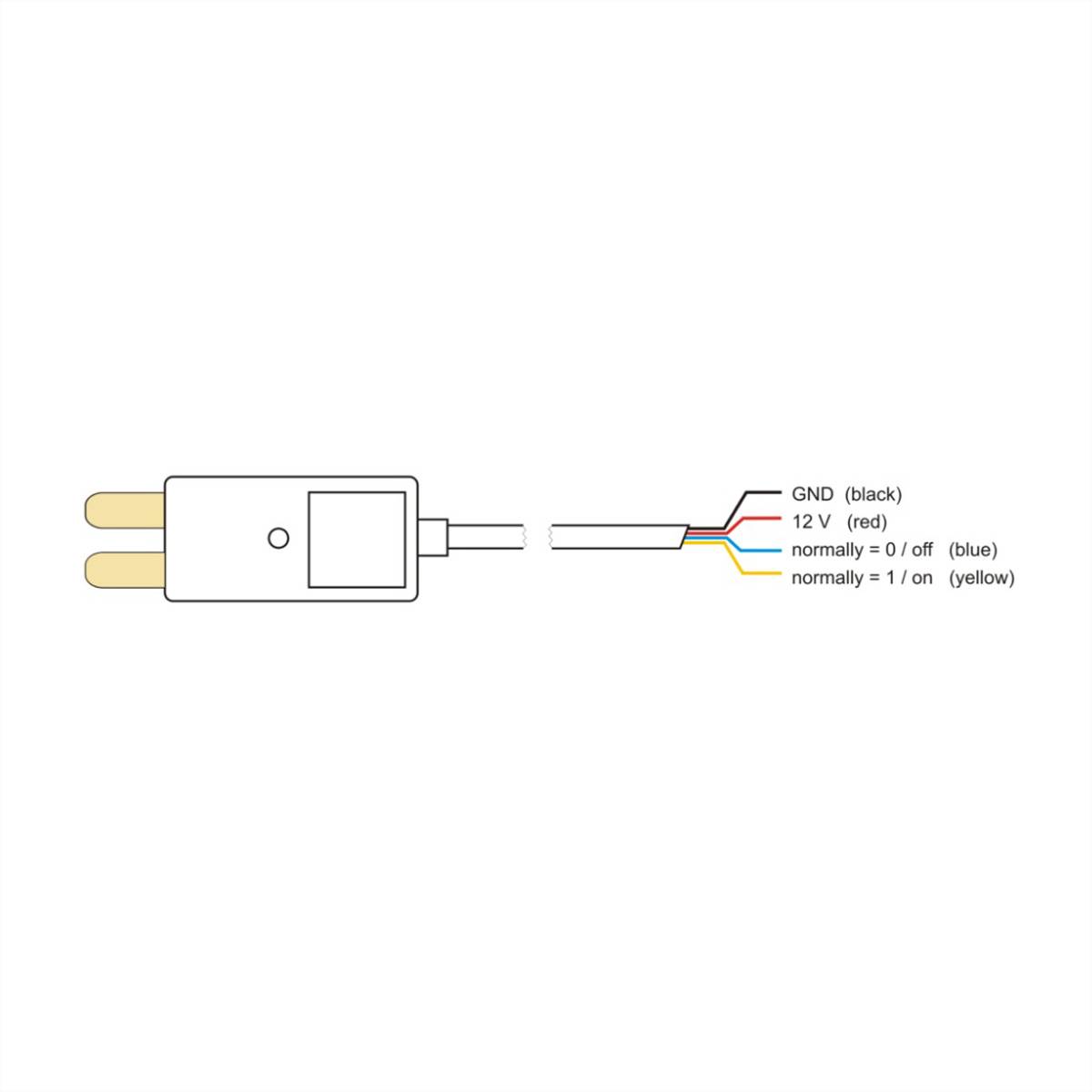

The leakage point sensor 7313 allows the room monitoring with respect to possible flooding events with conductive liquids such as Freshwater and salt water. The free cable ends of the sensor are simply connected to the corresponding free industrial terminal inputs of the GUDE product. A quick and easy sensor placement is possible thanks to the 2.5 m cable connected. In case of a leakage, wetting the two electrodes with a conductive liquid sends a signal to the connected GUDE product, which triggers a corresponding alarm signal.
This text is machine translated.
Features
- Leakage sensor for monitoring flood
- Simple setup
- Cable length approx. 2.5 m
- For devices with industry-standard terminals
Scope of delivery
- GUDE 7313 Leakage point sensor
