GUDE 8035-2 Socket Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

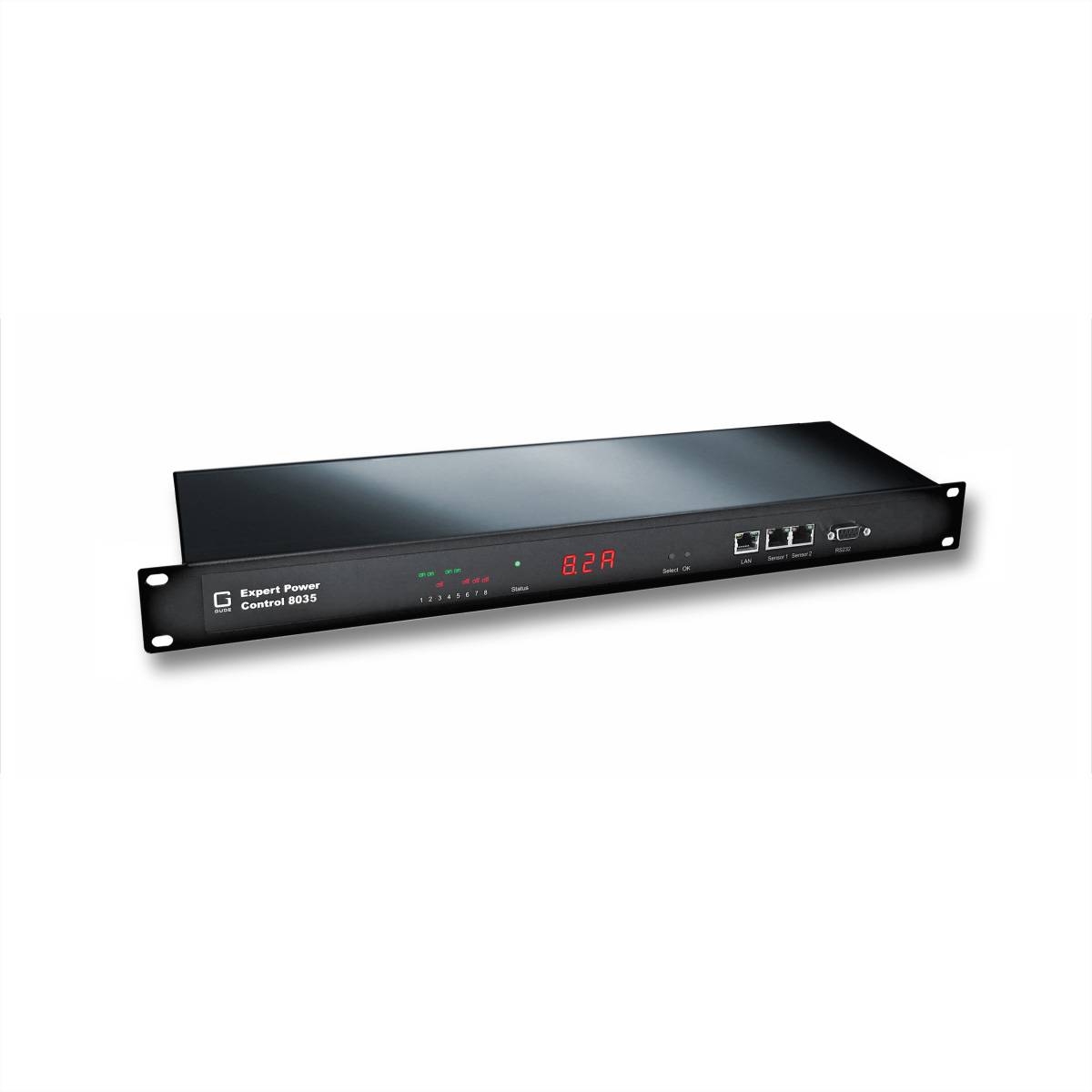

Güde 8035-2 Power Distribution Unit (PDU) 8 AC Outputs 1U Black
- Meter, Modified 1U Black
- LED
- 8 AC-outputs C13-coupler
Technical specifications
- Rack capacity: 1U
- Number of AC outputs: 8 AC outputs
- Product type
Socket
- Outlets
8
- Factory colour
Black
- Dim
(W x H x D) 438 x 44 x 178 mm
- Width
438 mm
- Height
44 mm
- Depth
178 mm
- Content
1 pc(s)
- Load (max.)
16 A
- 10/100/1000 Mbps ports
1 x
- Weight
2.2 kg
- UKCA
yes
- Operating temperature (T-T)
0 - 50 °C
- Serial ports quantity
1
- Firmware upgradeable
yes
- Operating relative humidity (H-H)
0 - 95 %
- Storage temperature (T-T)
-20 - 70 °C
Documents & Downloads
Datasheet
Datasheet 3797270 GUDE 8035-2 Socket Black
User & Safety Instructions
User & Safety Instructions 3797270 GUDE 8035-2 Socket Black
Description
8-way switched and outlet-metered PDU for increasing the operational safety and energy efficiency in IT networks
Expert Power control 8035-2 prevents the IEC lock terminals from unintentional disconnection of the cable through a patented locking mechanism (IEC lock). These Power ports are each switched separately via a web interface, via the serial interface, via SNMP or the button on the device. It supports SNMPv3, SSL and IPv6, as well as Telnet, Radius and Modbus TCP. In addition to a total current measurement, the switched and outlet-metered PDUs of the Expert Power 8035 series have two integrated energy counters per load output (outlet-metered). The measurement of a large number of electrical quantities makes it possible for the user to recognize and exploit the power saving potentials at the device level in the IT environment. In addition, the operator receives warning messages when fault currents occur (differential current measurement type A). This allows preventive maintenance before downtime occurs.
This text is machine translated.
Features
- Switching and controlling servers and IT devices in the server room and data center
- Switch network or media technology devices by media controls of well-known AV manufacturers
- (Atlanta, Barco, Crestron, Extron, Neets)
- Remotely restart PCs, servers, routers, and switches
- Reduce the power consumption of standby devices through schedule control
- Network monitoring through integration with monitoring software (PRTG, Icinga, Nagios, Power IQ, Tivoli)
- Environment monitoring by connected sensors (temperature, humidity and air pressure)
Scope of delivery
- Expert Power control 8025-1, connection cable (protective ground contact - IEC C19), quick start guide
