Name: GW Instek ASR-2100 Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0.1 - 500 10 mA 1000 W USB programmabl
Brand: GW Instek
SKU: 2992282

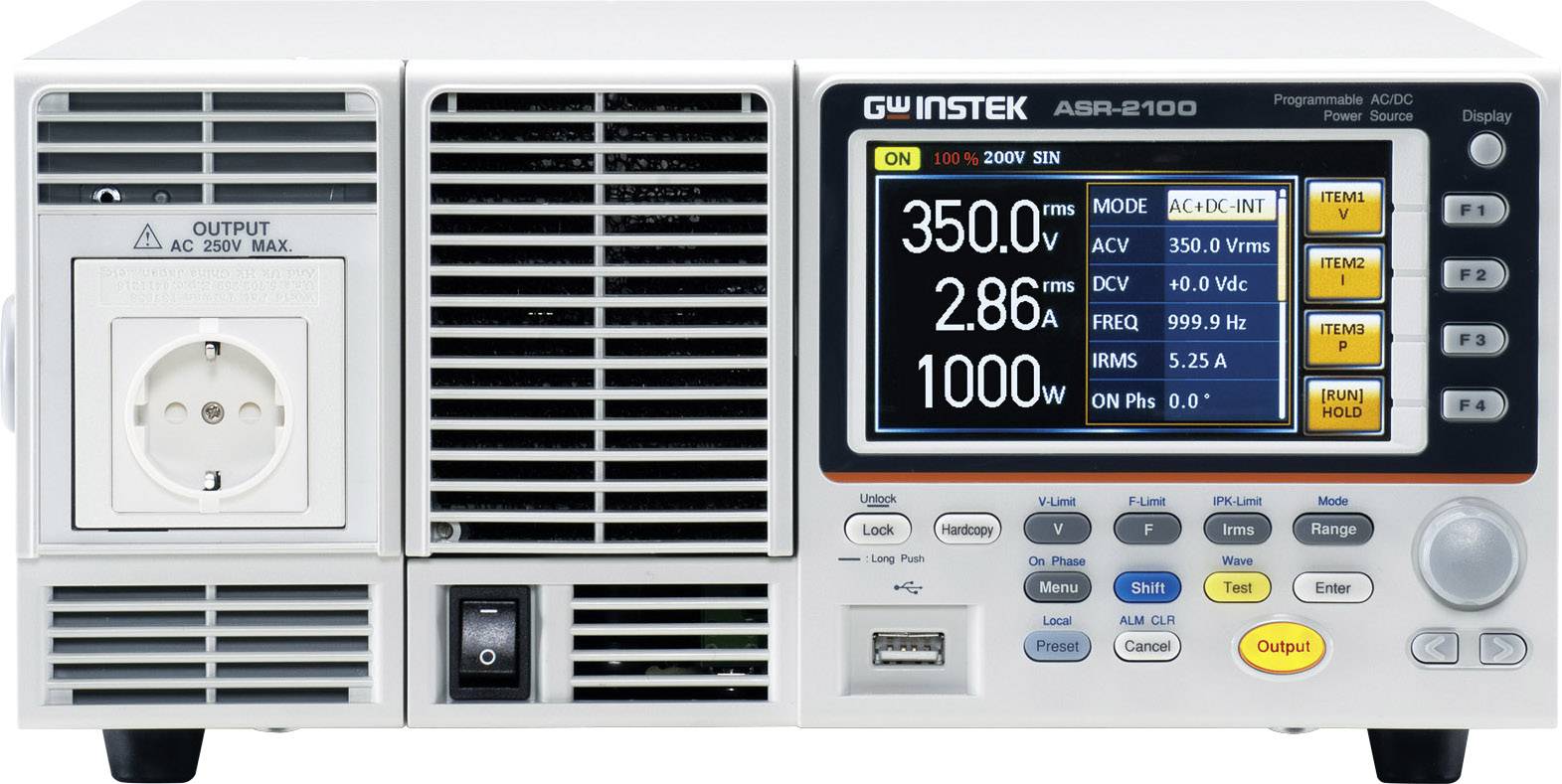

Power supply unit with digital display, showing '350 V', '2.86 A', '1000 W'. Buttons and switches for control, socket on the left.

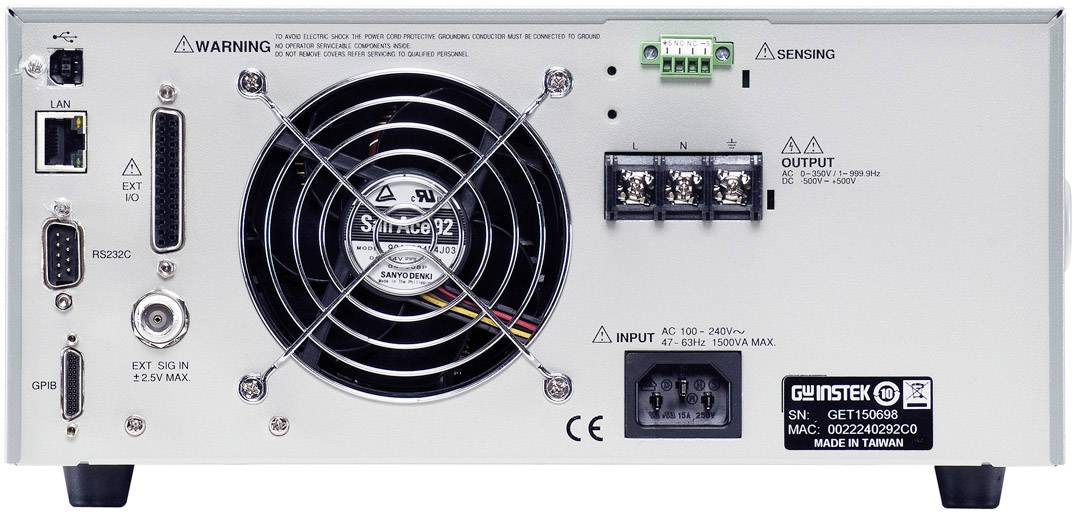

The rear of an electronic device with a fan, ports and power supply. 'Warning' and 'Output' modules are labelled.

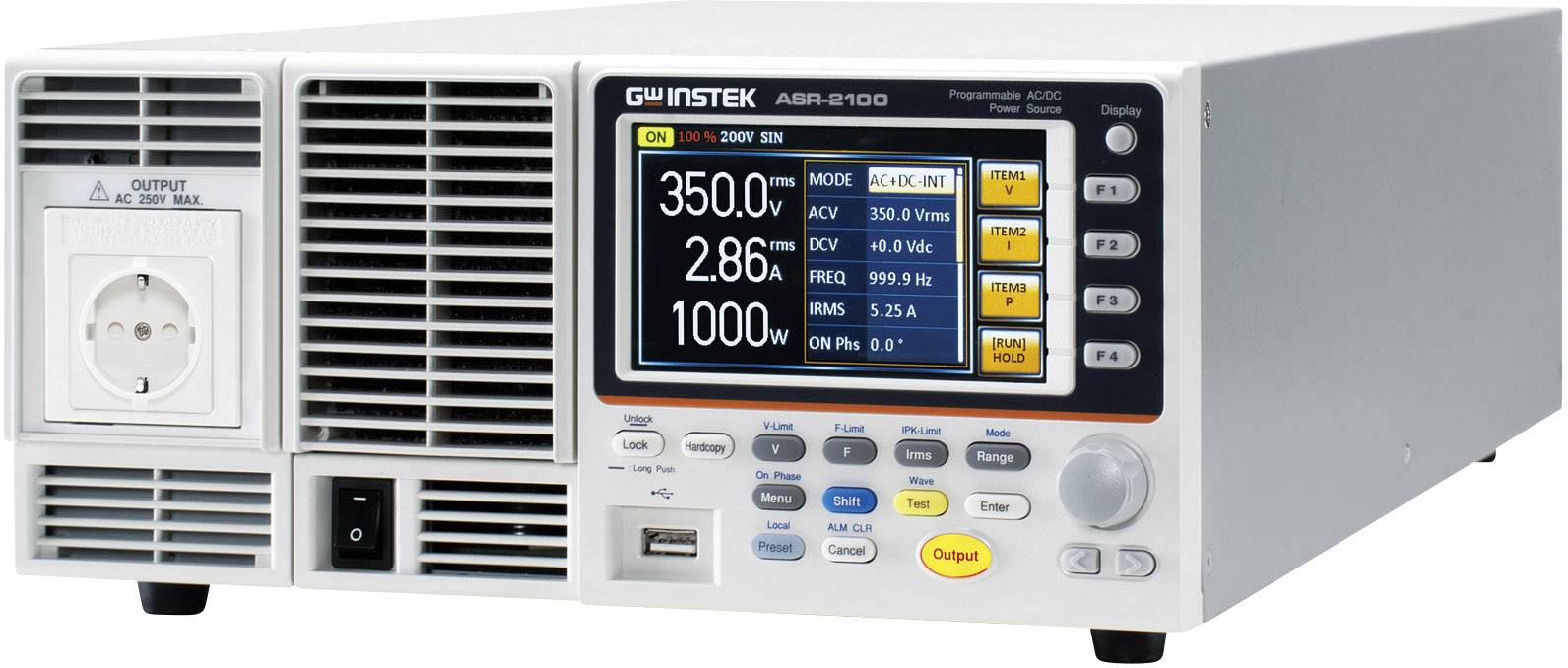

An electronic measuring device with a display shows voltage and current values. It has several buttons for adjustment and a socket on the left.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

ASR-2100 (Universal) Programmable AC/DC power source, 1000VA, (GPIB+RS232) (CE)

No. of outputs 1 x
0.1 - 500 / 10 mA
1000 W
USB
programmable

Technical specifications

Type: ASR-2100

Product type: Bench PSU (adjustable voltage)

No. of outputs: 1 x

: 1000 W

Interfaces: USB

Features: programmable

Dim: (L x W x H) 480 x 285 x 124 mm

: DAkkS standards

Input voltage: 240 V AC

Weight: 11.5 kg

Output voltage (max.): 500 V

Output voltage (min.): 0.1 V

Max. output current: 10 A

Output current (min.): 10 mA

Width: 285 mm

Height: 124 mm

Length: 480 mm

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Calibrated to

Output voltage

GW Instek ASR-2100 Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0.1 - 500 10 mA 1000 W USB programmable No. of outputs 1 x

Item no:2992282

Unavailable

Conrad Electronic

This article

DAkkS standards

0.1 - 500

Piece(s)

Minimum order quantity: 1

Multiple: 1

GW Instek ASR-2100 Bench PSU (adjustable voltage) 0.1 - 500 10 mA 1000 W GPIB programmable No. of outputs 1 x

Item no:2865798

Dispatches on Tue 10 Nov

Conrad Electronic

Manufacturer's standards (no certificate)

0.1 - 500

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4,525.00^*

GW Instek ASR-2100 Bench PSU (adjustable voltage) 0.1 - 500 10 mA 1000 W No. of outputs 1 x

Item no:2865792

Dispatches on Tue 10 Nov

Conrad Electronic

Manufacturer's standards (no certificate)

0.1 - 500

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4,139.00^*

GW Instek ASR-2100 Bench PSU (adjustable voltage) 0.1 - 500 10 mA 1000 W USB OVP No. of outputs 1 x

Item no:2865793

Dispatches on Tue 10 Nov

Conrad Electronic

Manufacturer's standards (no certificate)

0.1 - 500

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4,525.00^*

GW Instek ASR-2100 Bench PSU (adjustable voltage) 0.1 - 500 10 mA 1000 W USB programmable No. of outputs 1 x

Item no:2865791

Available soon

Conrad Electronic

Manufacturer's standards (no certificate)

0.1 - 500

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4,139.00^*

GW Instek ASR-2100 Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0.1 - 500 10 mA 1000 W USB programmable No. of outputs 1 x

Item no:2992278

Unavailable

Conrad Electronic

DAkkS standards

0.1 - 500

Piece(s)

Minimum order quantity: 1

Multiple: 1

GW Instek ASR-2100 Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0.1 - 500 10 mA 1000 W USB programmable No. of outputs 1 x

Item no:2992277

Unavailable

Conrad Electronic

DAkkS standards

0.1 - 500

Piece(s)

Minimum order quantity: 1

Multiple: 1

GW Instek ASR-2100 Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0.1 - 500 10 mA 1000 W USB programmable No. of outputs 1 x

Item no:2992284

Unavailable

Conrad Electronic

DAkkS standards

0.1 - 500

Piece(s)

Minimum order quantity: 1

Multiple: 1

GW Instek ASR-2100 Bench PSU (adjustable voltage) Calibrated to (ISO standards) 0.1 - 500 10 mA 1000 W USB programmable No. of outputs 1 x

Item no:2992279

Unavailable

Conrad Electronic

ISO standards

0.1 - 500

Piece(s)

Minimum order quantity: 1

Multiple: 1

GW Instek ASR-2100 Bench PSU (adjustable voltage) Calibrated to (ISO standards) 0.1 - 500 10 mA 1000 W USB programmable No. of outputs 1 x

Item no:2992283

Unavailable

Conrad Electronic

ISO standards

0.1 - 500

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2992282 GW Instek ASR-2100 Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0.1 - 500 10 mA 1000 W USB programmabl

User & Safety Instructions

User & Safety Instructions 2992282 GW Instek ASR-2100 Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0.1 - 500 10 mA 1000 W USB programmabl

Information

Information 2992282 GW Instek ASR-2100 Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0.1 - 500 10 mA 1000 W USB programmabl

Features

Programmable AC/DC power source
Output power: AC 0 - 350 Vrms, DC 0 - ± 500 V.
Output frequency up to 999.9 Hz
DC output (100% of rated power)
Output power 1000VA
Measuring elements: VRMs, Vavg, Vpeak, Irmen, IpkH, Iavg, Ipeak, P, S, Q, PF, CF.
Voltage and current harmonics analysis (THDv, THDi)
Adjusted phase angle for output
On
Remote sensing function
OVP, OCP, OPP, OTP, AC error detection and fan error alarm
Interface: USB, LAN (standard), RS-232 + GPIB (opt)
Built-in external control inputs and external signal input
Built-in output relay control
Memory function (up to 10 sets)
Sequence and simulation function (up to 10 sets)
Support of arbitrary waveform function
Built-in web server
This text is machine translated.

Scope of delivery

GW-Instek ASR-2100 progr.lab power supply
This text is machine translated.

Description

Features

Programmable AC/DC power source
Output power: AC 0 - 350 Vrms, DC 0 - ± 500 V.
Output frequency up to 999.9 Hz
DC output (100% of rated power)
Output power 1000VA
Measuring elements: VRMs, Vavg, Vpeak, Irmen, IpkH, Iavg, Ipeak, P, S, Q, PF, CF.
Voltage and current harmonics analysis (THDv, THDi)
Adjusted phase angle for output
On
Remote sensing function
OVP, OCP, OPP, OTP, AC error detection and fan error alarm
Interface: USB, LAN (standard), RS-232 + GPIB (opt)
Built-in external control inputs and external signal input
Built-in output relay control
Memory function (up to 10 sets)
Sequence and simulation function (up to 10 sets)
Support of arbitrary waveform function
Built-in web server
This text is machine translated.

Scope of delivery

GW-Instek ASR-2100 progr.lab power supply
This text is machine translated.
