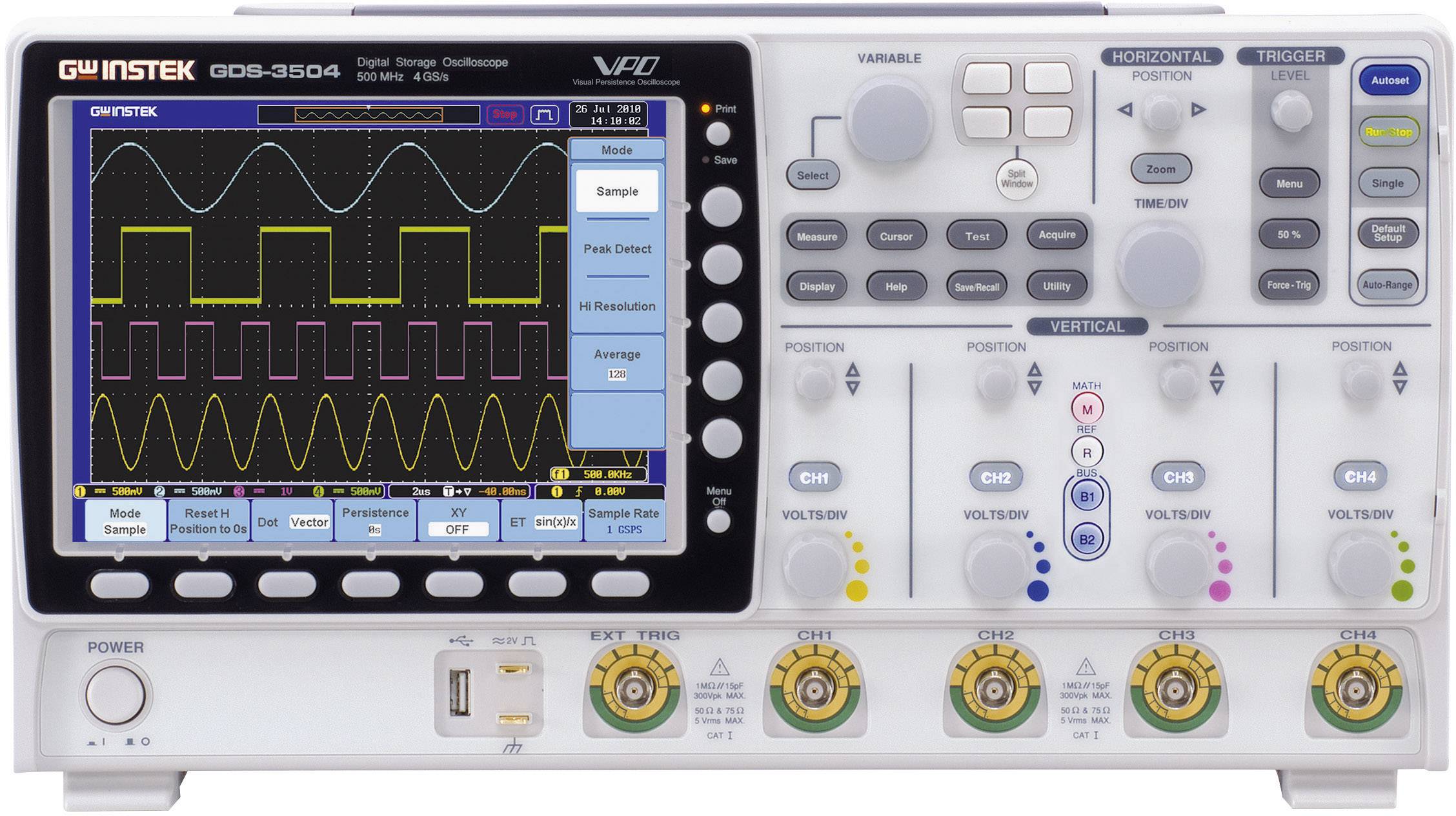

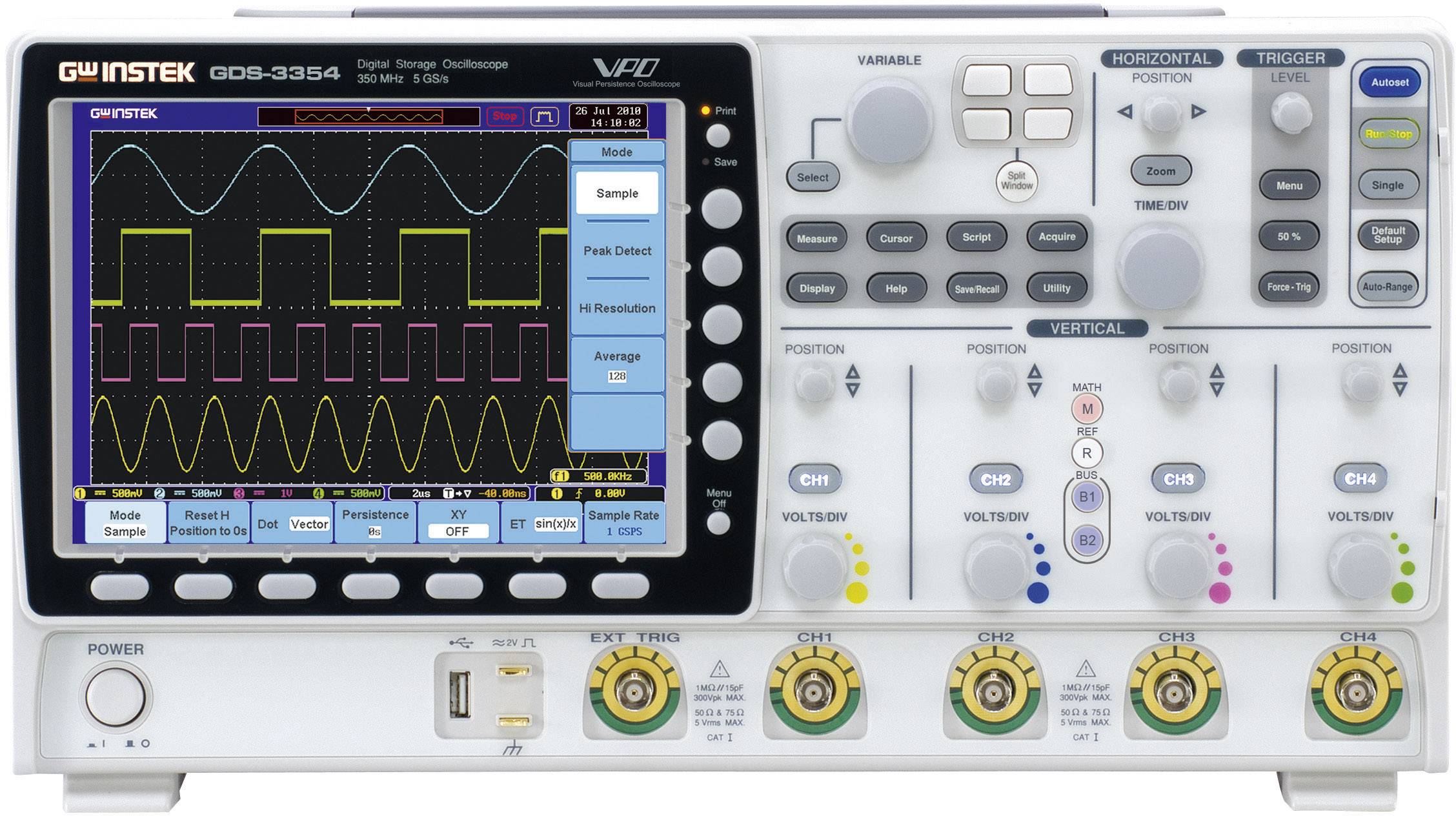

GW Instek GDS-3504 Digital Calibrated to (ISO standards) 150 MHz 4 GS/s 25 KP 8 Bit Digital storage (DSO) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Digital storage oscilloscope
- 150 MHz
- No. of analogue inputs 4
Technical specifications
- Product type
Digital
- Bandwidth
150 MHz
- Channel sample rate
4 GS/s
- Displays
Color TFT
- Resolution
8 Bit
- Screen size
20.3 cm
- Oscilloscope features
Digital storage (DSO)
- Time base
1 ns - 100 s/div
- No. of analogue inputs
4
ISO standards
- Reading category
CAT I
- Vertical deflection
2 mV - 5 V/div
- Input impedance
1 MΩ;50 Ω;75 Ω
- Input coupling
AC, DC, GND
- Input voltage
300 V
- Power supply (details)
115 V/AC; 230 V AC
- Dim
(L x W x H) 130 x 400 x 200 mm
- Weight
4 kg
- Display
800 x 600 p
- Calibration service
5 measured values per range up to 500 MHz, calibration without supplied probes
- Width
400 mm
- Height
200 mm
- Length
130 mm
- Interfaces
USB
USB host
RS232
Ethernet
- Channel memory depth
25 KP
- Type
GDS-3504
Documents & Downloads
Datasheet
Datasheet 2226386 GW Instek GDS-3504 Digital Calibrated to (ISO standards) 150 MHz 4 GS/s 25 KP 8 Bit Digital storage (DSO) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2226386 GW Instek GDS-3504 Digital Calibrated to (ISO standards) 150 MHz 4 GS/s 25 KP 8 Bit Digital storage (DSO) 1 pc(s)
Description
The oscilloscopes of the GDS-3000 series of GW Instek offer with a bandwidth of up to 500 MHz and a maximum real-time sampling rate of up to 5 GSa/s efficient measuring instrument for research and laboratory. The Split Screen and zoom function, both the display of the most important waveforms, as well as the simultaneous display matching enlargements.
The oscilloscopes have standard high-speed USB-Host connections at the front and rear side of the device, in order to be able to ensure easy access to stored data.
The integrated SVGA video output makes it possible to the displayed images on a monitor or an external projector.
This text is machine translated.
The oscilloscopes have standard high-speed USB-Host connections at the front and rear side of the device, in order to be able to ensure easy access to stored data.
The integrated SVGA video output makes it possible to the displayed images on a monitor or an external projector.
This text is machine translated.
Features
- Split Screen and zoom function
- USB connection for USB storage media
- Channels
- 20 cm (8") TFT, high-resolution
- 25k pts Memory / channel
- 10 psec time resolution
- VPO (Visual Persistence Oscilloscope) technology
- 50 ohm, 75 ohms or 1 MOhm input impedance can be set
- 64 MB internal memory
- 100 GSa/s ET sampling rate.
Scope of delivery
- 1 Probe per channel
- Power cord
- Quick Guide (DE/GB/FR/NL)
- Engl. Instructions for use on CD.
Hints
Please note the sample calibration certified under "Downloads" for the scope of the calibration. Your right to cancel does not apply to this product.
