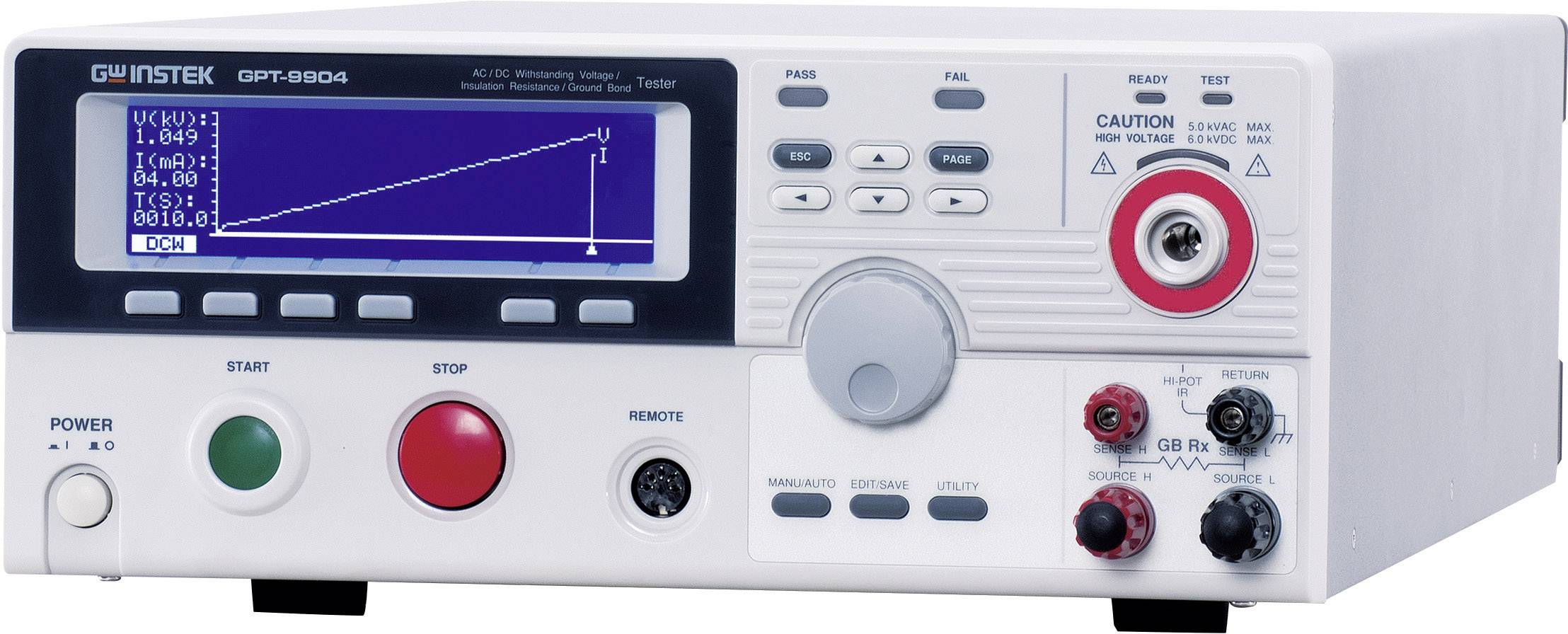

GW Instek GPT-9904 Insulation tester, Dielectric withstand tester Calibrated to (DAkkS standards) 100 V, 250 V, 500 V, 1
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Voltage tester GPT-9904
- 4 in 1 measuring functions
- AC/DC-surge voltage test
- Insulation Test
- High-current-mass connection test
Technical specifications
- Voltage setting: 2 V steps
- Waveform: Sine
- Max. Testing power 500 VA
- Ramp function: 0.1 - 999.9 s.
- Timer for test time: Off/0.1 - 999.9 s.
- Test voltage Insulation resistance: 50 - 1000 V/DC
- High current connection test: 3 - 32 A/AC
- Display (details): LCD dot matrix, 240 x 64 pixels
- Surge voltage 0.1 - 5 kV/AC; 0.1 - 6 kV/DC
- Data memory: 100
- Voltage setting Insulation resistance: 50 V steps
- Measurement range low resistance: 10 - 650.0 mΩ
- Product type
Insulation tester
- Test voltage
100 V
250 V
500 V
1000 V
- Reading type
Insulation resistance
DAkkS standards
- Interfaces
1x USB
1x RS 232
- Power supply (details)
100/120/220/230 V AC
- Dim
(L x W x H) 46 x 33 x 15 cm
- Weight
15 kg
- Display type
Digital (LCD)
- Insulation resistance (max.)
50 GΩ
- Calibration service
10 calibration values per range
- Voltage reading range (max.)
1000 V
- Voltage reading range (min.)
50 V
- Width
33 cm
- Height
15 cm
- Length
46 cm
Documents & Downloads
Datasheet
Datasheet 2234658 GW Instek GPT-9904 Insulation tester, Dielectric withstand tester Calibrated to (DAkkS standards) 100 V, 250 V, 500 V, 1
User & Safety Instructions
User & Safety Instructions 2234658 GW Instek GPT-9904 Insulation tester, Dielectric withstand tester Calibrated to (DAkkS standards) 100 V, 250 V, 500 V, 1
User & Safety Instructions 2234658 GW Instek GPT-9904 Insulation tester, Dielectric withstand tester Calibrated to (DAkkS standards) 100 V, 250 V, 500 V, 1
Information
Information 2234658 GW Instek GPT-9904 Insulation tester, Dielectric withstand tester Calibrated to (DAkkS standards) 100 V, 250 V, 500 V, 1
Description
The surge tester enables the testing of insulation and contact points with a pre-selectable voltage. The test output is 500 VA. In addition, insulation resistance measurement up to 50 GΩ and a high current connection test with up to 32 A is possible.
This text is machine translated.
This text is machine translated.
Features
- Key lock
- Manual or automatic test procedure
- High resolution
- 100 memory slots with individual naming
- Function keys for quick selection
- Remotely controllable
- USB and RS232 interface
- Front and rear measuring connections.
Scope of delivery
- Power cord
- User manual
- Key for locking function
- Remote plug
- Safety test lead by weight-114
- Test lead GTL-115.
Hints
Please note the sample calibration certificate stored under "Downloads" for the scope of the calibration. Your right to cancel does not apply to this product.
