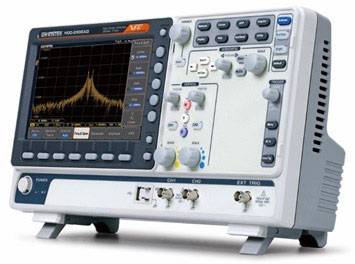

GW Instek MDO-2302AG Digital Calibrated to (DAkkS standards) 300 MHz 2-channel 200 MSa/s 2000 KP 14 Bit Spectrum analyze
EAN:
Part number:
Item no:
Highlights & Details
GW Instek MDO-2302AG 300MHz Oscilloscope
- 300 MHz
- No. of analogue inputs 2
Technical specifications
- Product type
Digital
- Bandwidth
300 MHz
- Channel sample rate
200 MSa/s
- Resolution
14 Bit
- Screen size
8 inch
- Oscilloscope features
Spectrum analyzer
- No. of analogue inputs
2
DAkkS standards
- Dim
(L x W x H) 208 x 384 x 127 mm
- Weight
3 kg
- Display
TFT 800 x 480 p
- Width
384 mm
- Height
127 mm
- Length
208 mm
- Interfaces
LAN
USB device
USB host
BNC
- Channel memory depth
2000 KP
- Type
MDO-2302AG
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2468967 GW Instek MDO-2302AG Digital Calibrated to (DAkkS standards) 300 MHz 2-channel 200 MSa/s 2000 KP 14 Bit Spectrum analyze
Description
Features
- 300 MHz bandwidth
- 2-channel
- Real-time sampling rate is 2GSa/s max.
- Per channel 20M memory depth and VPO waveform display technology
- Waveform refresh rate up to 120,000 wfms/s.
- 8" (20.3 cm) WVGA TFT LCD-Display
- maximum 1M FFT provides measurements of the multi-frequency domain resolution
- High, low and band-pass filter functions
- 29,000 segmented memory and waveform search functions
- I2C/UART/CAN/LIN serial edge bus trigger and decoding function
- Data logging function can track signal changes up to 1000 hours
- Network storage function
- Mask test function
- MDO-2000AG equipped with a 25MHz dual channel AWG
- Interface
- High-speed USB device port, host port
- LAN connection
- Go/NoGo BNC
- Kensington Style lock
- Software and drivers
- PC software (OpenWave software)
- LabVIEW driver
- USB driver
Scope of delivery
- Power cable;
- Passive sample (one sample per channel)
- GTL-110 BNC-BNC cable*2 (AG only)
- Certificate of Calibration
- CD-ROM (with Quick Start Guide, User Manual, Programming Manual)
- Free download: Openwave software
- USB driver
- LabVIEW driver.
