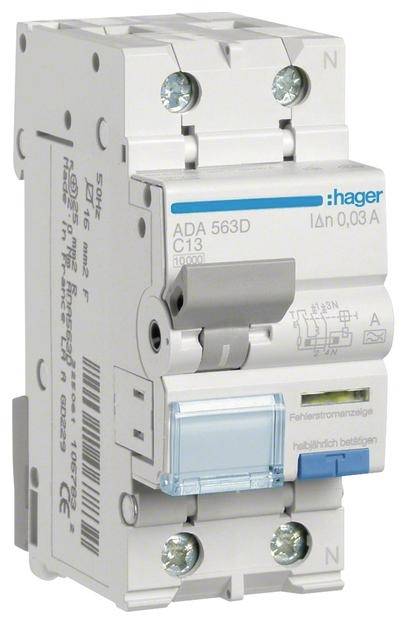

Hager ADA563D RCBO 2-pin 13 A 0.03 A 240 V
EAN:
Part number:
Item no:
Product type
RCBO
Number of pins
2
Release characteristics
C
Differential current rating
0.03 A
Nominal current - rounded value
13 A
Datasheet (PDF)
Technical specifications
- Product type
RCBO
- Number of pins
2
- Release characteristics
C
- Differential current rating
0.03 A
- Dim
(W x H x D) 40.0000 x 80.0000 x 100.0000 mm
- Content
1 pc(s)
- Nominal current
13 A
- Nominal current - rounded value
13 A
- Switch-off capacity
10 kA
- Nominal voltage
240 V
- Width
40.0000 mm
- Height
80.0000 mm
- Depth
100.0000 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3199431 Hager ADA563D RCBO 2-pin 13 A 0.03 A 240 V
User & Safety Instructions
User & Safety Instructions 3199431 Hager ADA563D RCBO 2-pin 13 A 0.03 A 240 V
Description
Residual current circuit breaker 1P+N 10kA C-13A 30mA type A. Residual current circuit breaker according to DIN EN61009-1 (VDE 0664-20) and DIN EN 61009-2-1 (VDE 0664-21) with bi-connect terminals at the bottom, blue test button and fault current indicator. Simple removal from the multi-phase bus system. Suitable for add-on installation of additional devices. Labelling possibility directly on the device.
