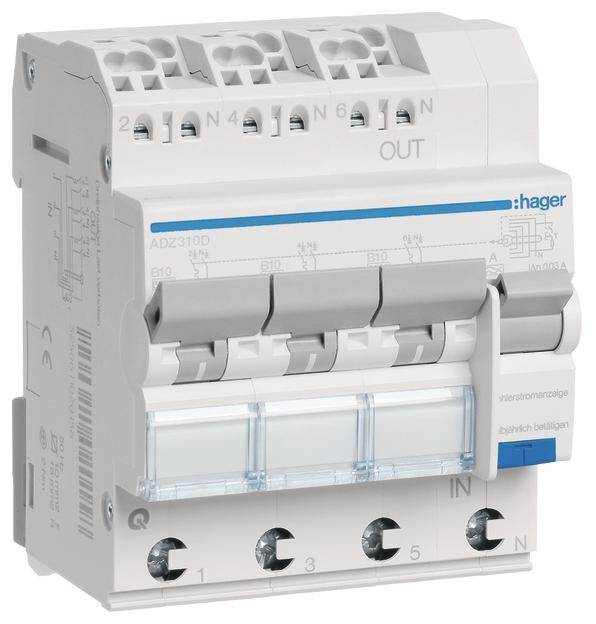

Hager ADZ310D RCBO 4-pin 10 A 0.03 A 230 V
Product type
RCBO
Number of pins
4
Release characteristics
B
Differential current rating
0.03 A
Nominal current - rounded value
10 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
RCBO
- Number of pins
4
- Release characteristics
B
- Differential current rating
0.03 A
- Dim
(W x H x D) 300 x 200 x 400 mm
- Content
1 pc(s)
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Switch-off capacity
6 kA
- Nominal voltage
230 V
- Width
300 mm
- Height
200 mm
- Depth
400 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3199954 Hager ADZ310D RCBO 4-pin 10 A 0.03 A 230 V
User & Safety Instructions
User & Safety Instructions 3199954 Hager ADZ310D RCBO 4-pin 10 A 0.03 A 230 V
Description
Residual current circuit breaker 3X 1P+N 6kA B-10A 30mA type A QuickConnect. Residual current circuit breaker in accordance with DIN EN 61009-1 (VDE 0664-20) with 3 x 1-pole circuit breaker for 230 V AC circuits and a residual current circuit breaker in compact casing. QuickConnect terminal to DIN EN 60898-1 (VDE 0641-11), at the outlet up to 16 A and at access up to 63 A, blue test button and fault current display. Simple individual removal from the phase-rail network. Suitable for add-on installation of additional devices. Labelling possibility directly on the device.
