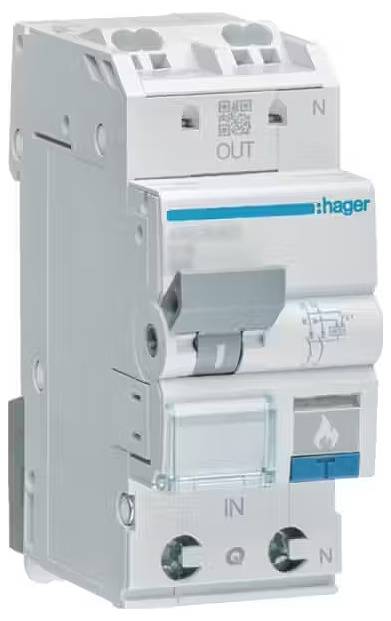

Hager ARC910D AFDD 2-pin 10 A 0.3 A
EAN:
Part number:
Item no:
Product type
AFDD
Number of pins
2
Release characteristics
B
Nominal current - rounded value
10 A
Differential current rating
0.3 A
Datasheet (PDF)
Technical specifications
- Product type
AFDD
- Differential current rating
0.3 A
- Number of pins
2
- Release characteristics
B
- Nominal current - rounded value
10 A
- Nominal current
10 A
- Content
1 pc(s)
- Switch-off capacity
6 kA
- Depth
70 mm
- Switch/button features
+ button
Documents & Downloads
Datasheet
Datasheet 3360587 Hager ARC910D AFDD 2-pin 10 A 0.3 A
User & Safety Instructions
User & Safety Instructions 3360587 Hager ARC910D AFDD 2-pin 10 A 0.3 A
Information
Information 3360587 Hager ARC910D AFDD 2-pin 10 A 0.3 A
Description
AFDD fault-arc protective device with LS-switch 1P+N 6kA B-10A 2M.AFDD according to DIN EN 62606 (VDE 0665-10), combined with circuit breaker 1P+N, with electronic differential current measurement (300 mA) for increasing the fire protection in circuits not protected with RCD, with QuickConnect terminal according to DIN EN 60898-1 (VDE 0641-11), blue test button for the AFD-unit with error-arc display. Simple individual removal from the phase-rail network. Suitable for add-on installation of additional devices. Labelling possibility directly on the device.
