Hager BRA1202ELN Trunking Top part (L x W) 2000 mm x 120 mm 2 m
EAN:
Part number:
Item no:
Technical specifications
- Product type
Trunking
- Component
Top part
- Supplied length
2000 mm
- Content
2 m
- Dim

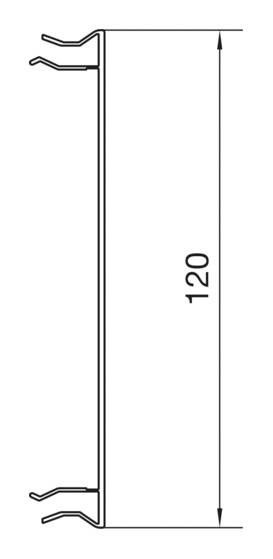

(L x W) 2000 mm x 120 mm
- Length
2000 mm
- Width
120 mm
Other
120
Plain
TRUE
Anodised
Other
2000 m
Aluminium
Inner lying
TRUE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2815169 Hager BRA1202ELN Trunking Top part (L x W) 2000 mm x 120 mm 2 m
Description

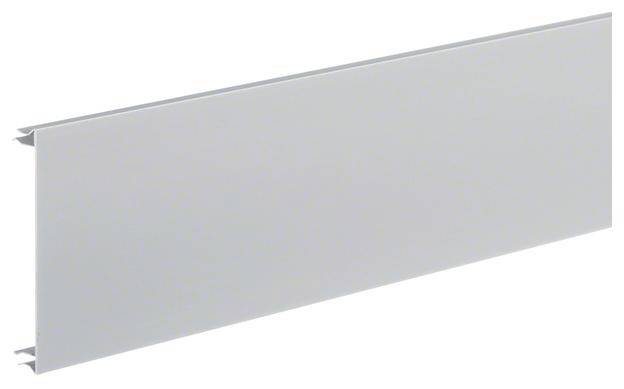

Cable duct upper part for BRA width 120mm made of aluminum natural anodized. Trunking top aluminum, snap-on, internal, for electrical installation ducts. In accordance with DIN EN 50085-1, as equipment duct. The equipotential bonding connection between the upper and lower sections of the duct is effected simply by snapping without additional accessories.
