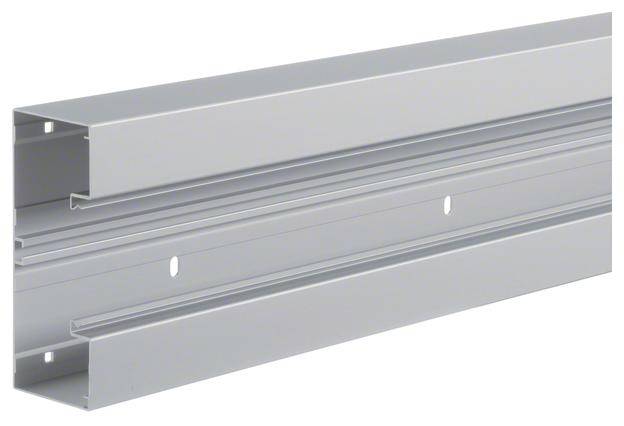

Hager BRA651701ELN Trunking Bottom part (L x W) 2000 mm x 170 mm 2 m Aluminium
EAN:
Part number:
Item no:
Technical specifications
- Product type
Trunking
- Component
Bottom part
- Content
2 m
- Factory colour
Aluminium

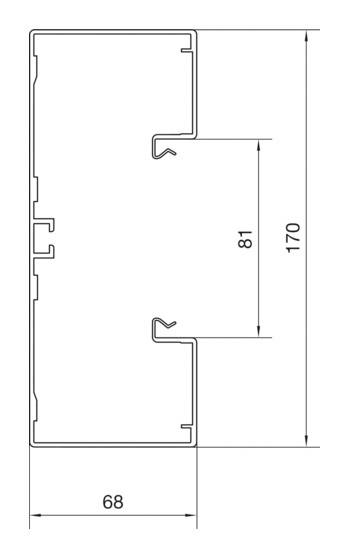

- Dim
(L x W) 2000 mm x 170 mm
- Length
2000 mm
- Width
170 mm
- Depth
68 mm
Aluminium
170
TRUE
68 mm
Anodised
Other
2000 m
Aluminium
Inner lying
1
1
TRUE
FALSE
TRUE
10050 mm²
80 mm
0
0
TRUE
TRUE
Continuous C-profile
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2815182 Hager BRA651701ELN Trunking Bottom part (L x W) 2000 mm x 170 mm 2 m Aluminium
Description
Parapet channel - lower section, front-rast BRA 68x170mm OT 80mm made of aluminum natural anodized. Lower section for the electrical installation channel system Dado trunking made of aluminum according to DIN EN 50085-1 as a device mounting channel. With floor perforation for direct wall mounting and additional rectangular holes for tool-free mounting of the channel via clip technology on consoles. With C-profile for mounting devices, equipment installation boxes with quick mounting and dividers. With upper section 80 mm, additional front locking device installation is possible for mounting without tools Couplings for potential balancing as well as for simple and fitting channel connection, dividing walls and cable retention clamps available as accessories. Note: Equalisation of potential, earthing, sound and fire protection measures must be carried out in a professional manner.
