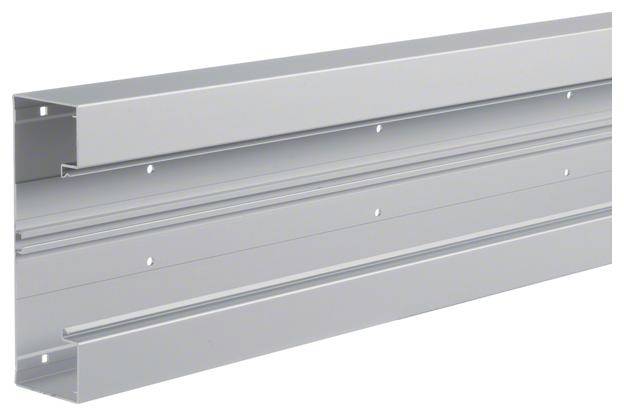

Hager BRA652101BELN Trunking Bottom part (L x W) 2000 mm x 210 mm 2 m Aluminium
EAN:
Part number:
Item no:
Technical specifications
- Product type
Trunking
- Component
Bottom part
- Content
2 m
- Factory colour
Aluminium

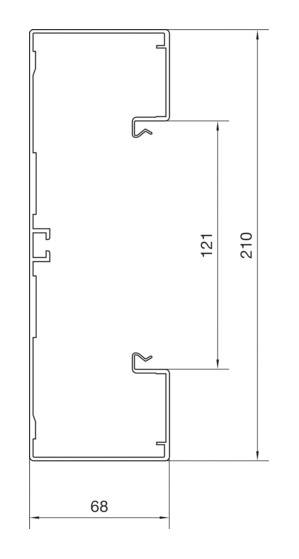

- Dim
(L x W) 2000 mm x 210 mm
- Length
2000 mm
- Width
210 mm
- Depth
68 mm
Aluminium
210
TRUE
68 mm
Anodised
Other
2000 m
Aluminium
Inner lying
1
1
TRUE
FALSE
TRUE
12520 mm²
0
0
TRUE
TRUE
Continuous C-profile
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2815191 Hager BRA652101BELN Trunking Bottom part (L x W) 2000 mm x 210 mm 2 m Aluminium
Description
Dado trunking lower section C profile BRA 68x210mm aluminum anodized top part 120mm. Lower section for the electrical installation channel system Dado trunking made of aluminum according to DIN EN 50085-1 as a device mounting channel. With floor perforation for direct wall mounting and additional rectangular holes for tool-free mounting of the channel via clip technology on consoles. With C-profile for mounting devices, equipment installation boxes with quick mounting and dividers. With upper section 80 mm, additional front locking device installation is possible for mounting without tools Couplings for potential balancing as well as for simple and fitting channel connection, dividing walls and cable retention clamps available as accessories. Note: Equalisation of potential, earthing, sound and fire protection measures must be carried out in a professional manner.
