Name: Hager BRS6510017035 Trunking Bottom part (L x W) 2000 mm x 100 mm 2 m Grey
Brand: Hager
SKU: 2815022

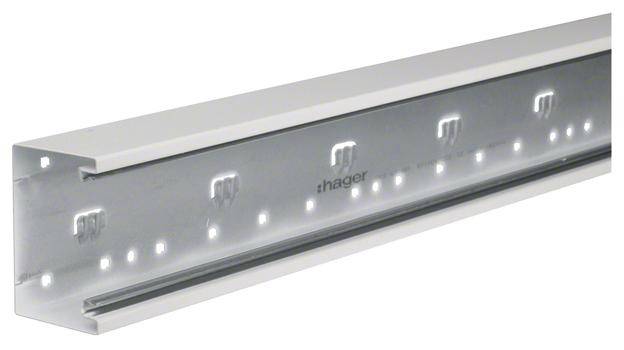

Metal rail with LED lights, labelled with 'hager'. Illuminating the interior, showing uniform light distribution and modern design.

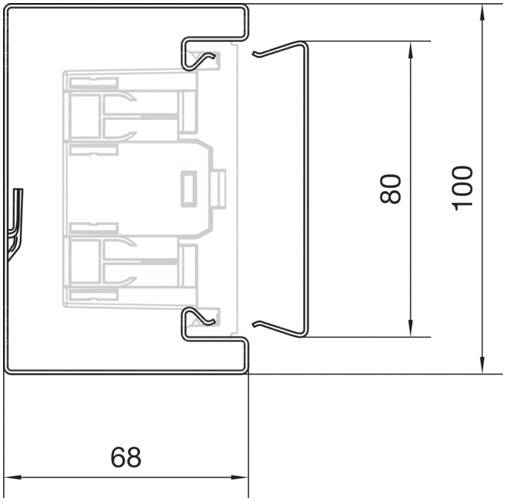

Technical drawing shows the dimensions of an electrical component: 100mm height, 80mm width, 68mm depth.

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Trunking

Component: Bottom part

Content: 2 m

Factory colour: Grey

Dim: (L x W) 2000 mm x 100 mm

Length: 2000 mm

Width: 100 mm

Depth: 68 mm

: Grey

: 100

: TRUE

: 68 mm

: 7035

: Coated

: Other

: 2000 m

: Steel

: Inner lying

: 1

: 1

: TRUE

: FALSE

: TRUE

: 5790 mm²

: 80 mm

: 0

: 0

: TRUE

: TRUE

: With cam clamps

: TRUE

: FALSE

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2815022 Hager BRS6510017035 Trunking Bottom part (L x W) 2000 mm x 100 mm 2 m Grey

Description

Dado trunking base front latch steel BRS 70x100mm top 80mm light gray. Channel lower section for the electrical installation channel system Dado trunking made from steel sheet according to DIN EN 50085-1 as a device mounting channel. With floor perforation for direct wall mounting and additional rectangular holes for tool-free mounting of the channel via clip technology on consoles. With front locking, tool-free equipment installation for the attachment of devices, device installation sockets with quick mounting With upper section 120 mm C-profile equipment installation. Couplings for potential balancing as well as for simple and fitting channel connection, dividing walls and cable retention clamps available as accessories. Note: Equalisation of potential, earthing, sound and fire protection measures must be carried out in a professional manner.

This text is machine translated.
