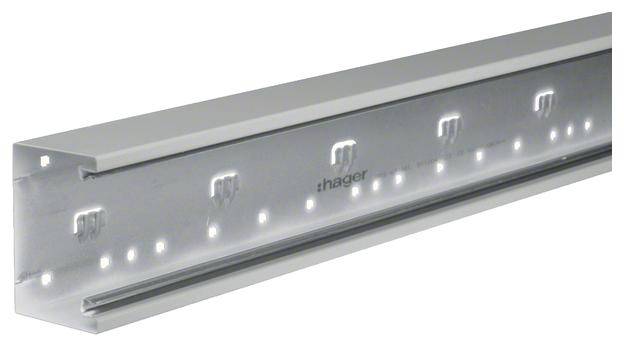

Hager BRS651001VERZ Trunking Bottom part (L x W) 2000 mm x 100 mm 2 m Multi-coloured
EAN:
Part number:
Item no:
Technical specifications
- Product type
Trunking
- Component
Bottom part
- Content
2 m
- Factory colour
Multi-coloured
- Dim

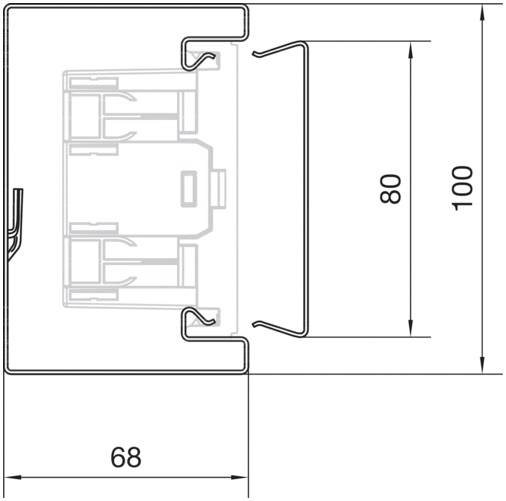

(L x W) 2000 mm x 100 mm
- Length
2000 mm
- Width
100 mm
- Depth
68 mm
Other
100
TRUE
68 mm
Continuously galvanized
Other
2000 m
Steel
Inner lying
1
1
TRUE
FALSE
TRUE
5790 mm²
80 mm
0
0
TRUE
TRUE
With cam clamps
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2815023 Hager BRS651001VERZ Trunking Bottom part (L x W) 2000 mm x 100 mm 2 m Multi-coloured
Description
Dado trunking lower section front latch steel BRS 70x100mm upper section galvanized 80mm. Channel lower section for the electrical installation channel system Dado trunking made from steel sheet according to DIN EN 50085-1 as a device mounting channel. With floor perforation for direct wall mounting and additional rectangular holes for tool-free mounting of the channel via clip technology on consoles. With front locking, tool-free equipment installation for the attachment of devices, device installation sockets with quick mounting With upper section 120 mm C-profile equipment installation. Couplings for potential balancing as well as for simple and fitting channel connection, dividing walls and cable retention clamps available as accessories. Note: Equalisation of potential, earthing, sound and fire protection measures must be carried out in a professional manner.
