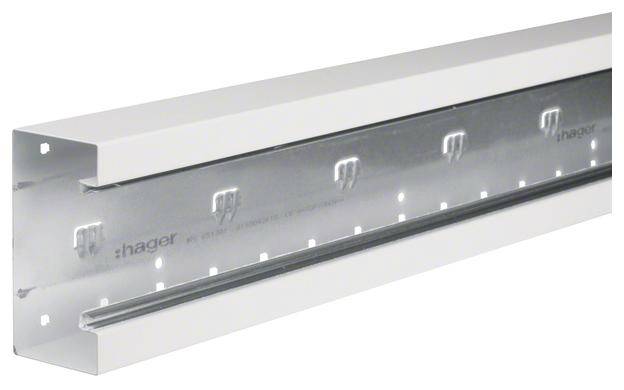

Hager BRS6513019016 Trunking Bottom part (L x W) 2000 mm x 130 mm 2 m White
EAN:
Part number:
Item no:
Technical specifications
- Product type
Trunking
- Component
Bottom part
- Content
2 m
- Factory colour
White
- Dim

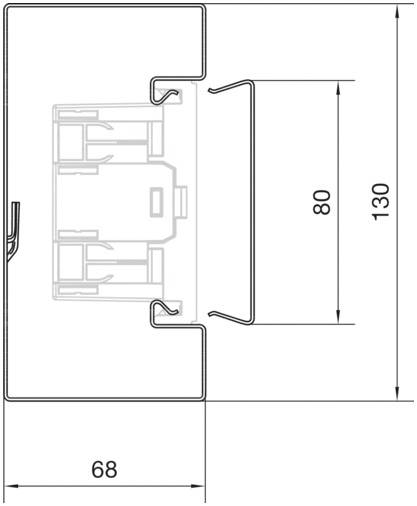

(L x W) 2000 mm x 130 mm
- Length
2000 mm
- Width
130 mm
- Depth
68 mm
White
130
TRUE
68 mm
9016
Coated
Other
2000 m
Steel
Inner lying
1
1
TRUE
FALSE
TRUE
7700 mm²
80 mm
TRUE
TRUE
With cam clamps
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2815489 Hager BRS6513019016 Trunking Bottom part (L x W) 2000 mm x 130 mm 2 m White
Description
Dado trunking base, front latch for BRS 68 x 130 mm upper part 80mm steel vauw. Channel lower section for the electrical installation channel system Dado trunking made from steel sheet according to DIN EN 50085-1 as a device mounting channel. With floor perforation for direct wall mounting and additional rectangular holes for tool-free mounting of the channel via clip technology on consoles. With front locking, tool-free equipment installation for the attachment of devices, device installation sockets with quick mounting With upper section 120 mm C-profile equipment installation. Couplings for potential balancing as well as for simple and fitting channel connection, dividing walls and cable retention clamps available as accessories. Note: Equalisation of potential, earthing, sound and fire protection measures must be carried out in a professional manner.
