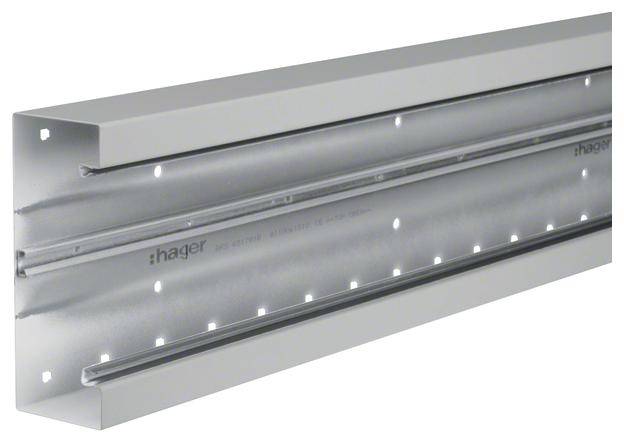

Hager BRS651701BVERZ Trunking Bottom part (L x W) 2000 mm x 170 mm 2 m
EAN:
Part number:
Item no:
Technical specifications
- Product type
Trunking
- Component
Bottom part
- Content
2 m
- Dim
(L x W) 2000 mm x 170 mm
- Length
2000 mm
- Width
170 mm
- Depth
68 mm
Other
170
TRUE
68 mm
Continuously galvanized
Other
2000 m
Steel
Inner lying
1
1
TRUE
FALSE
TRUE
10070 mm²
120 mm
0
0
TRUE
TRUE
Continuous C-profile
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2815045 Hager BRS651701BVERZ Trunking Bottom part (L x W) 2000 mm x 170 mm 2 m
Description

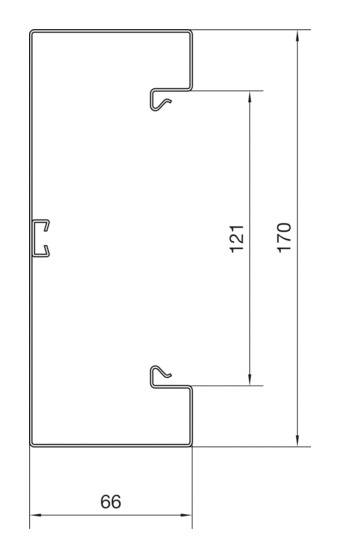

Dado trunking base C-profile BRS 66x170mm OT 120mm made of galvanized steel plate. Channel lower section for the electrical installation channel system Dado trunking made from steel sheet according to DIN EN 50085-1 as a device mounting channel. With floor perforation for direct wall mounting and additional rectangular holes for tool-free mounting of the channel via clip technology on consoles. With front locking, tool-free equipment installation for the attachment of devices, device installation sockets with quick mounting With upper section 120 mm C-profile equipment installation. Couplings for potential balancing as well as for simple and fitting channel connection, dividing walls and cable retention clamps available as accessories. Note: Equalisation of potential, earthing, sound and fire protection measures must be carried out in a professional manner.
