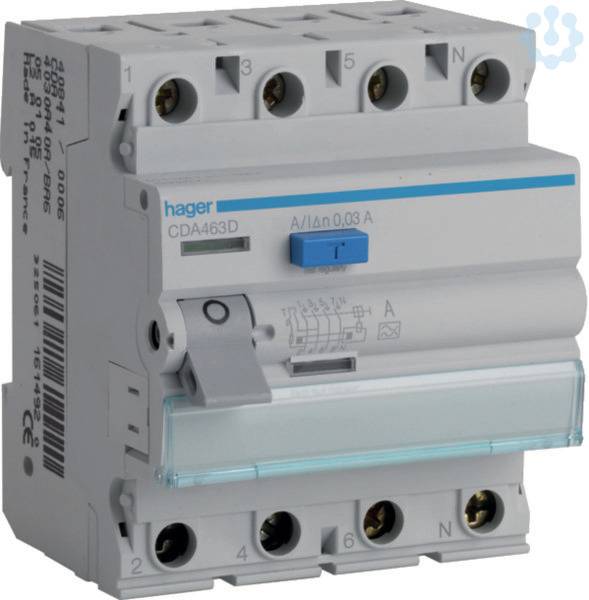

Hager CDA463D CDA463D RCCB 4-pin 63 A 0.03 A
Product type
RCCB
Number of pins
4
Differential current rating
0.03 A
Nominal current - rounded value
63 A
Nominal current
63 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Isolation voltage: 500 V
- Operating temperature: -25 to 40 °C
- Product type
RCCB
- Number of pins
4
- Differential current rating
0.03 A
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Dim
(W x H x D) 70 x 83 x 70 mm
- Switch-off capacity
6 kA
- Factory colour
Multicolour
- Content
1 pc(s)
- Width
70 mm
- Height
83 mm
- Depth
70 mm
- Nominal voltage (details)
230/400 V
- Operating voltage
230/400 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1845536 Hager CDA463D CDA463D RCCB 4-pin 63 A 0.03 A
Description
Residual current circuit breaker 4-pole 6kA 63A 30mA Type A
Residual current circuit breaker (RCD) according to EN 61008-1, DIN EN 61008-2-1, VDE 0664 part 10 + 11,
Contact protection IP2x according to DIN VDE 0106 Part 100. Suitable for subsequent installation of
Additional equipment (Mounting without tools). Connection terminals with Draht-Einschiebe-protection, Bi-
Connect terminals at the bottom, external blue test button. All products with VDE.
Labelling option directly on the device.
