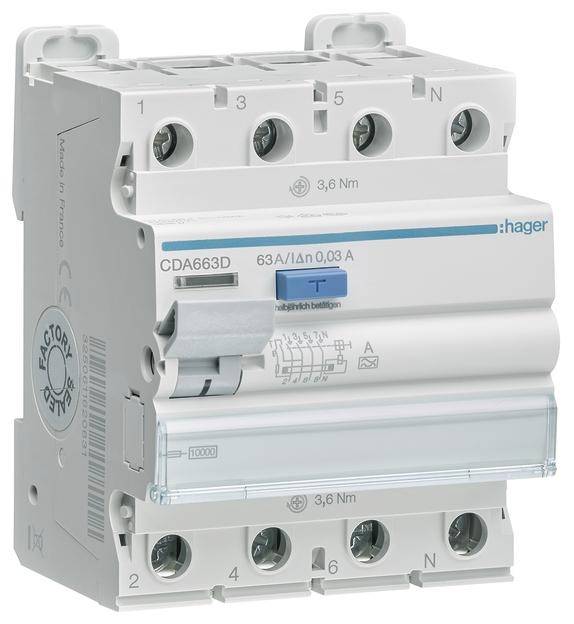

Hager CDA663D CDA663D RCCB A 4-pin 63 A 0.03 A 400 V
Product type
RCCB
Number of pins
4
Release characteristics
A
Differential current rating
0.03 A
Nominal current - rounded value
63 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
RCCB
- Number of pins
4
- Release characteristics
A
- Differential current rating
0.03 A
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Dim
(W x H x D) 80 x 75 x 100 mm
- Switch-off capacity
10 kA
- Factory colour
Multicolour
- Content
1 pc(s)
- Nominal voltage
400 V
- Width
80 mm
- Height
75 mm
- Depth
100 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3200246 Hager CDA663D CDA663D RCCB A 4-pin 63 A 0.03 A 400 V
User & Safety Instructions
User & Safety Instructions 3200246 Hager CDA663D CDA663D RCCB A 4-pin 63 A 0.03 A 400 V
Description
Residual current circuit breaker 4-pin 10kA 63A 30mA A type A. Fault current circuit breaker (FI) compliant with DIN EN 61008-1 (VDE 0664-10), DIN EN 61008-2-1 (VDE 0664-11) with bi-connect terminals at the bottom, external blue test button and fault current indicator. Suitable for add-on installation of additional devices. Connection terminals with wire slide-in protection, labeling possibility directly on the device.
