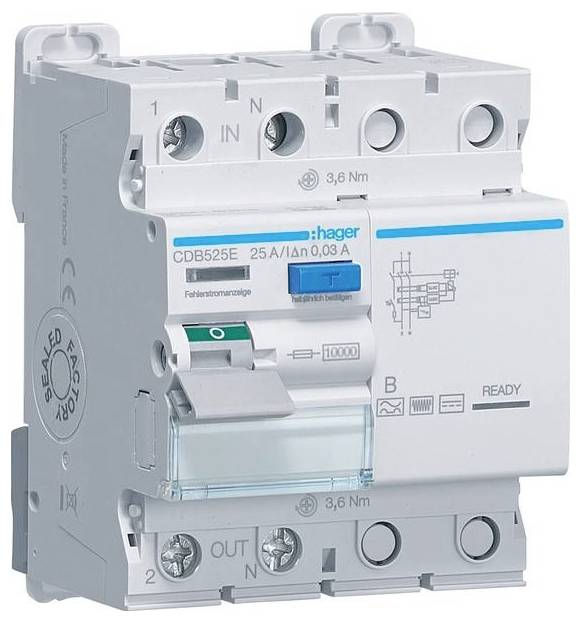

Hager CDB525E CDB525E RCCB RCD (all types of current) B 25 A 0.03 A 230 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
2
Release characteristics
B
Differential current rating
0.03 A
Nominal current - rounded value
25 A
Technical specifications
- Product type
RCCB
- Number of pins
2
- Release characteristics
B
- Differential current rating
0.03 A
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Dim
(L x W x H) 150 cm x 50 mm x 100 mm
- Model
RCD (all types of current)
- Switch-off capacity
10 kA
- Content
1 pc(s)
- Nominal voltage
230 V
- Width
50 mm
- Height
100 mm
- Length
150 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2893712 Hager CDB525E CDB525E RCCB RCD (all types of current) B 25 A 0.03 A 230 V
Description
Residual current circuit breaker 2-pin 10kA 25A 30mA type B All current sensitive residual current - protection switch (FI, RCCB) according to DIN EN 61008-1 (VDE 0664-10), DIN EN 61008-2-1 (VDE 0664-11), DIN EN 61543 (VDE 0664-30) and DIN EN 62423 (VDE 0664-40). Short-time delayed FI for protection against smooth leakage and alternating error currents in the frequency range up to 2 kHz. To meet the requirements of the installation standards DIN VDE 0100-410 and DIN VDE 0100-530. Suitable for add-on installation of additional devices. Connection terminals with bi-connect terminals below, external blue test button, type B. Operating display, top and bottom rail slides for easy installation. Labelling possibility directly on the device.
