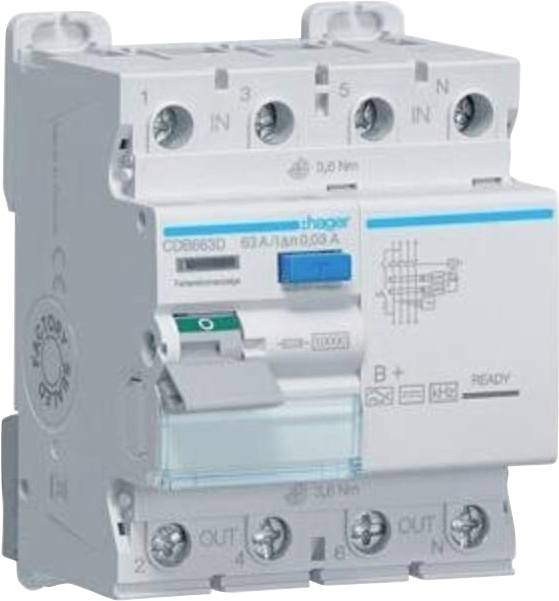

Hager CDB663D CDB663D RCCB RCD (all types of current) B+ 63 A 0.03 A 230 V, 400 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
4
Release characteristics
B+
Differential current rating
0.03 A
Nominal current - rounded value
63 A
Technical specifications
- Product type
RCCB
- Number of pins
4
- Release characteristics
B+
- Differential current rating
0.03 A
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Model
RCD (all types of current)
- Switch-off capacity
10 kA
- Content
1 pc(s)
- Nominal voltage
230 V
400 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2893716 Hager CDB663D CDB663D RCCB RCD (all types of current) B+ 63 A 0.03 A 230 V, 400 V
Description
Residual power circuit breaker 4-pin 10kA 63A 30mA type B+. All current sensitive residual current - protection switch (FI, RCCB) according to DIN EN 61008-1 (VDE 0664-10), DIN EN 61008-2-1 (VDE 0664-11), DIN EN 61543 (VDE 0664-30) and DIN EN 62423 (VDE 0664-40). Short-time delayed FI for protection against smooth leakage and alternating error currents in the frequency range up to 100 kHz. The triggering within this frequency range up to 20 kHz takes place below 420 mA. To meet the requirements of the installation standards DIN VDE 0100-410 and DIN VDE 0100-530. Suitable for subsequent installation of additional devices (installation without tools). Connection terminals with bi-connect terminals below, blue test button, fault current display, type Bplus. Operating display, top and bottom rail slides for easy installation. Labelling possibility directly on the device.
