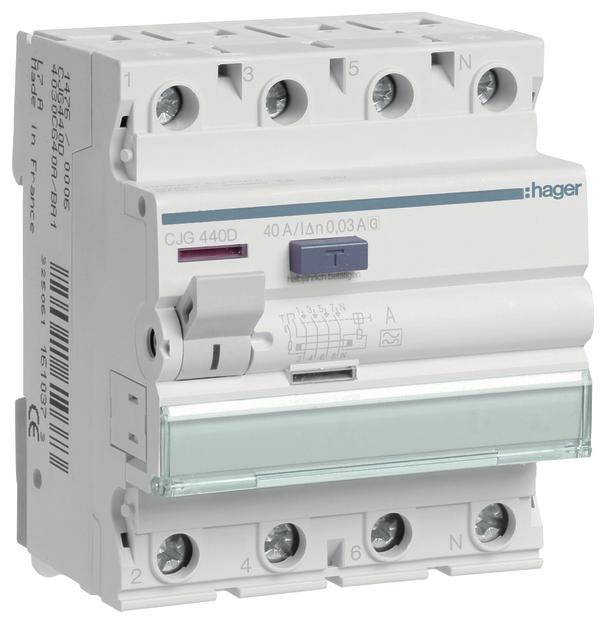

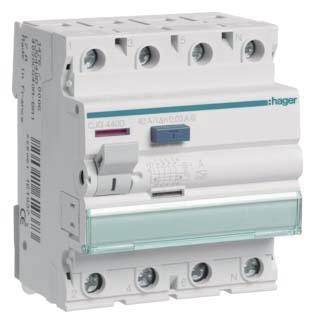

Hager CJG440D CJG440D RCCB A 4-pin 40 A 0.03 A 230 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
4
Release characteristics
A
Differential current rating
0.03 A
Nominal current - rounded value
40 A
Datasheet (PDF)
Technical specifications
- Product type
RCCB
- Number of pins
4
- Release characteristics
A
- Differential current rating
0.03 A
- Nominal current
40 A
- Nominal current - rounded value
40 A
- Dim
(W x H x D) 83.0000 x 70.0000 x 70.0000 mm
- Switch-off capacity
6 kA
- Content
1 pc(s)
- Nominal voltage
230 V
- Width
83.0000 mm
- Height
70.0000 mm
- Depth
70.0000 mm
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3199094 Hager CJG440D CJG440D RCCB A 4-pin 40 A 0.03 A 230 V
User & Safety Instructions
User & Safety Instructions 3199094 Hager CJG440D CJG440D RCCB A 4-pin 40 A 0.03 A 230 V
Description
FI-switch 4-pin 6kA 40A 30mA type G/A rated current selectable. Residual current circuit breaker (FI) according to DIN EN 61008-1 (VDE 0664-10), DIN EN 61008-2-1 (VDE 0664-11) with bi-connect terminals at the bottom, external blue test button and fault current display. Suitable for add-on installation of additional devices. Connection terminals with wire slide-in protection, labeling possibility directly on the device.
