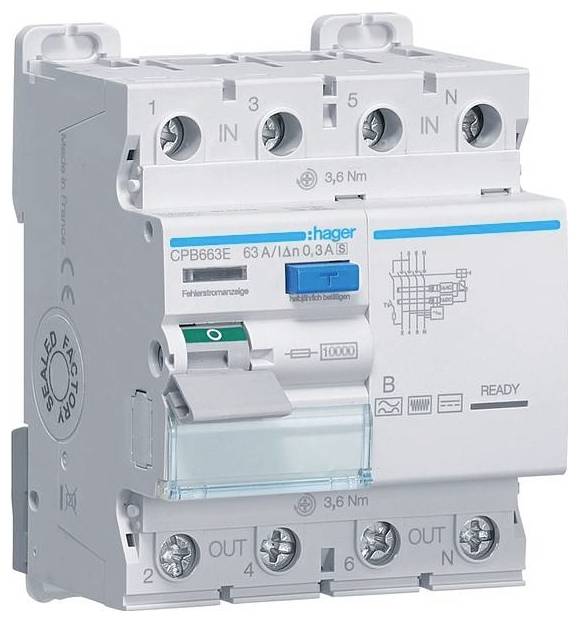

Hager CPB663E CPB663E RCCB RCD (all types of current) S/B 63 A 0.3 A
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
4
Release characteristics
S/B
Differential current rating
0.3 A
Nominal current - rounded value
63 A
Technical specifications
- Product type
RCCB
- Number of pins
4
- Release characteristics
S/B
- Differential current rating
0.3 A
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Model
RCD (all types of current)
- Switch-off capacity
10 kA
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2893729 Hager CPB663E CPB663E RCCB RCD (all types of current) S/B 63 A 0.3 A
Description
Residual current circuit breaker 4-pin 10kA 63A 300mA type B S selective. All current sensitive residual current - protection switch (FI, RCCB) according to DIN EN 61008-1 (VDE 0664-10), DIN EN 61008-2-1 (VDE 0664-11), DIN EN 61543 (VDE 0664-30) and DIN EN 62423 (VDE 0664-40). Short-time delayed and selective FI to protect against smooth error and alternate fault currents in the frequency range up to 2 kHz. To meet the requirements of the installation standards DIN VDE 0100-410 and DIN VDE 0100-530. Suitable for subsequent installation of additional devices (installation without tools). Connection terminals with bi-connect terminals below, external blue test key, type B operation display, top hat rail for easy installation. Labelling possibility directly on the device.
