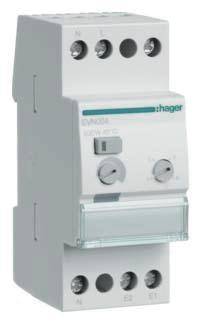

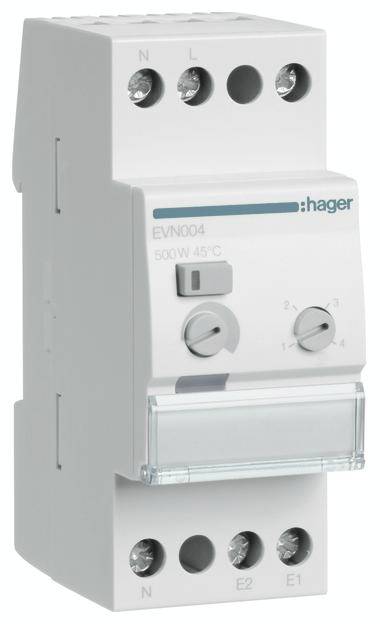

Hager EVN004 DIN-rail dimmer Suitable for light bulbs: LED bulb, Light bulb, Halogen lamp Grey
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
DIN-rail dimmer
- Operating voltage
230 V
- Suitable for light bulbs
LED bulb
Light bulb
Halogen lamp
- Switching capacity (LED)
100 W
- Switching capacity (light bulbs)
500 W
- Switching capacity (halogen bulbs)
500 W
- Factory colour
Grey
- Dim
(L x W x H) 62 x 300 x 85 mm
- Length
62 mm
- Width
300 mm
- Height
85 mm
DRA (DIN-rail adapter)
Basic element
Turn/push button
Grey
FALSE
Screwed terminal
Untreated
50-60 MHz
Thermoplastic
Plastic
Mounting with claw
9001
FALSE
Matt
IP20
35 mm
85 mm
62 mm
TRUE
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3201653 Hager EVN004 DIN-rail dimmer Suitable for light bulbs: LED bulb, Light bulb, Halogen lamp Grey
User & Safety Instructions
User & Safety Instructions 3201653 Hager EVN004 DIN-rail dimmer Suitable for light bulbs: LED bulb, Light bulb, Halogen lamp Grey
Description
Remote dimmer 500W universal comfort, LED/ESL. Remote dimmer for controlling dimmable energy-saving and LED lamps, incandescent lamps, 230V halogen lamps and LV halogen lamps with wrapped or electronic transformer. Automatic load detection by means of detection method and learning function via the external push-button or via forced mode with the selector switch on the device. With convenient functions for scene, time-delayed scene, progressive switch-off (good night function), standby or 100% new activation. Memory function serves to control the last set value upon switching on. Control input through 2 multi-voltage inputs (24-230V AC/DC) is possible. Control possible via illuminated buttons on the device or with external button With low space requirement and low standby consumption of 0.2W. Remote control of the dimmer is also possible when illuminated by button. Electronic short circuit and over temperature protection.
