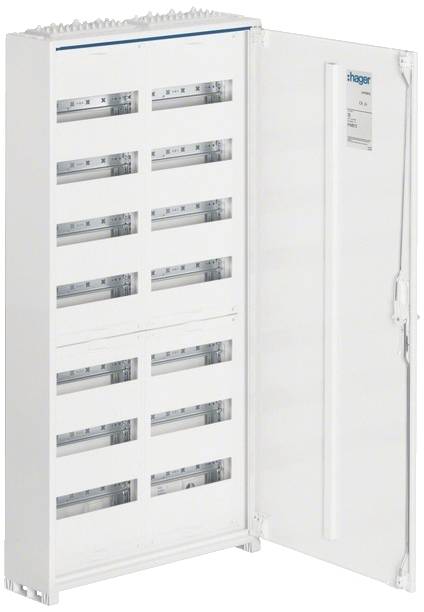

Hager FWB72A FWB72A Field distributor Surface-mount No. of rows = 14 Content 1 pc(s)

Field vert. AP, UNIVERS, IP44, SKII, 168PLE, 2x7 rows, 1150x550x161mm, no clamp. Field distributor according to DIN EN 61 439-1/-3, Dim. According to DIN 43 870. For installation of devices up to 125 A, air and creepage distances according to DIN EN 60664-1. Consisting of cupboard with door made of powder-coated and burned-in steel plate. From cabinet width 800 mm (3-field), two-door structure. Right doors have a maximum width of 2-field. Complete cabinet with installation kit equipped with profiled mounting rails, 7.5 mm high rails in 125 mm center distance and matching protection covers, without PE/N-QuickConnect terminals and without carrier. Cable entries above/below by removable flexible plastic flange plates, additionally replaceable. Door with internal adjustable hinges and an opening angle of 110°. Doors can be hinged on right and left, can be changed without tools Door stop. Standard door lock with three-point bar lock and sealable folding handle. Interchangeable lockable locking systems and doors, see accessories.

This text is machine translated.
