Name: Hager FWK3E501100VERZ Fire rated cable trunking Wiring duct (L x W x H) 1500 x 110 x 50 mm 1 pc(s) Galvanized
Brand: Hager
SKU: 3199123

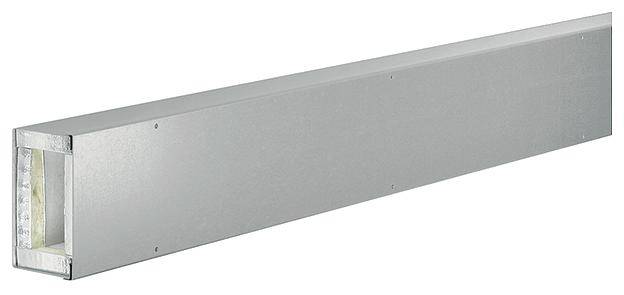

A long, rectangular, metallic ventilation duct with an open end, used for ventilation system installation.

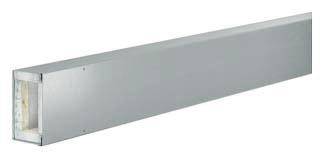

A long, rectangular, silver-coloured metal ventilation duct, shown in a diagonal view to the left.

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Fire rated cable trunking

Component: Wiring duct

Supplied length: 1.5 m

Content: 1 pc(s)

Factory colour: Galvanized

Dim: (L x W x H) 1500 x 110 x 50 mm

Length: 1500 mm

Width: 110 mm

Material: Metal (galvanized)

Height: 50 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3199123 Hager FWK3E501100VERZ Fire rated cable trunking Wiring duct (L x W x H) 1500 x 110 x 50 mm 1 pc(s) Galvanized

Description

Fire safety channel Functional safety E30 FWK 3E 50x110mm L=1, 5m zinc-plated. Fire-resistant cable routing channel FWK3E - E30 as per DIN 4102-12 for maintaining the functionality for wall and ceiling mounting. Channel lower part with removable and screwed-on several times over cable channel upper part. General test certificate P-BWU03-I 17.9.10.

This text is machine translated.
