Hager FZ441N Management duct (L x W x H) 300 x 300 x 176 mm 1 pc(s) White
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Management duct
- Content
1 pc(s)
- Factory colour
White
- Dim
(L x W x H) 300 x 300 x 176 mm
- Length
300 mm
- Width
300 mm
- Height
176 mm
- Material
Plastic
- Wireless charging
No
- Weight
1020 g
White
300
176 mm
300 m
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3201216 Hager FZ441N Management duct (L x W x H) 300 x 300 x 176 mm 1 pc(s) White
User & Safety Instructions
User & Safety Instructions 3201216 Hager FZ441N Management duct (L x W x H) 300 x 300 x 176 mm 1 pc(s) White
Description

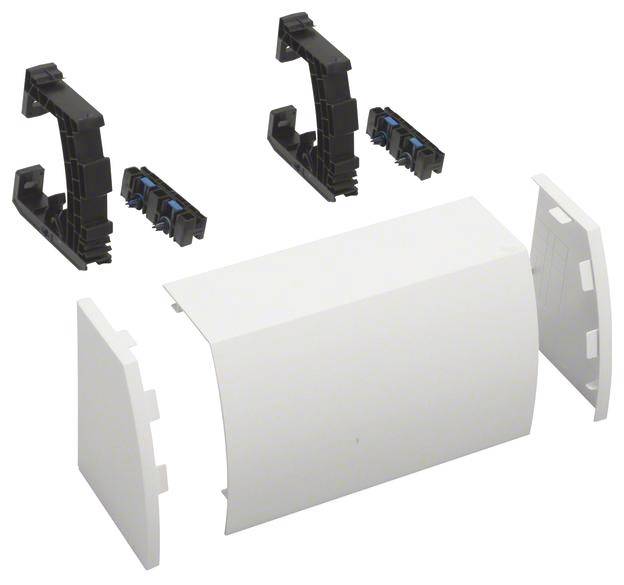

Cable management channel, 1-felled, can be plugged on, H x B x T176 x 300 x 135mm, RAL9010,. Electro-installation channel system Patch Channel-Set RK made of plastic, as transition between laid lines or installation channels and distribution cabinets. Shunting channel set comprising of channel profile with pre-determined breaks for unnotching for installation channels for depth 40, 50 and 60 mm. Plug and adjustable profile holders with plaster balance, with latch lugs for IP44/55 distribution cabinets with depth of 150 and 205 mm. Two profile holders for cabinets with field width up to 800 mm as well as three profile holders with field width up to 1300 mm. Attachable end caps for left and right are to be closed.
This text is machine translated.
This text is machine translated.
