Hager HIB416M HIB416M Changeover 4-pin 160 A 415 V
EAN:
Part number:
Item no:
Product type
Changeover
Number of pins
4
Nominal current - rounded value
160 A
Nominal current
160 A
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Product type
Changeover
- Number of pins
4
- Nominal current - rounded value
160 A
- Nominal current
160 A
- Content
1 pc(s)
- Nominal voltage
415 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3199917 Hager HIB416M HIB416M Changeover 4-pin 160 A 415 V
User & Safety Instructions
User & Safety Instructions 3199917 Hager HIB416M HIB416M Changeover 4-pin 160 A 415 V
Description

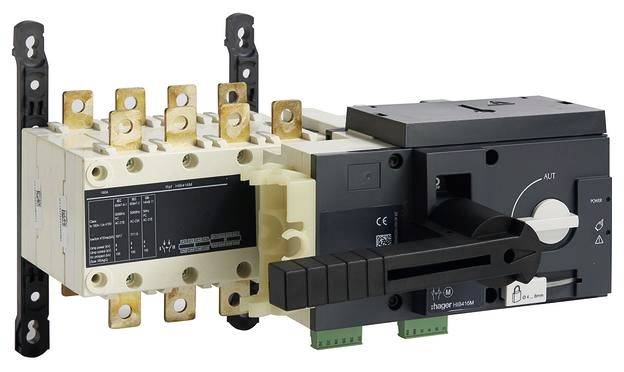

Load changeover switch with Motor drive 4pole 160A. Load switch with motor drive according to DIN EN 60947-3 and DIN EN 60947-6-1 for the remote switching of 2 low voltage circuits with safety isolation for installation in distributors. The changeover switch consists of two switch disconnectors with locking and remote drive arranged on top of each other. Function: - 3 stable switching positions (I-0-II) and the automatic switching under load from one position to the other safety isolation with switch position display - manual emergency switch handle - generously dimensioned connection rails, which enable the use of connection rails. With standby relay with constant monitoring of the availability of the device, integrated auxiliary switch (SÖ) for each switching point and automatic or manual switching can be selected. Note: Manual locking with padlock is possible.
