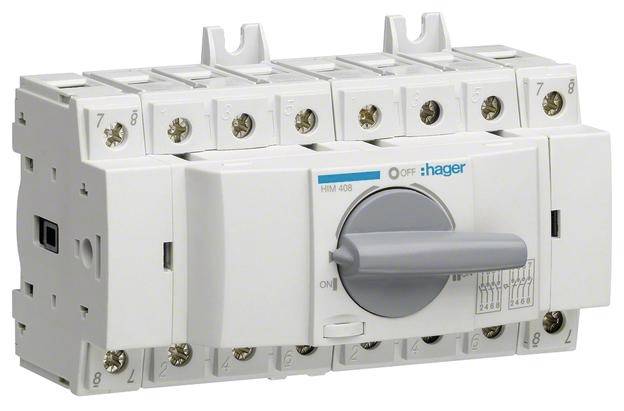

Hager HIM408 Hager HIM408 4-pole switch 80A for top-hat rail / mounting plate Changeover Grey 4-pin 80 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Changeover
Factory colour
Grey
Number of pins
4
Dim
(W x H x D) 100 x 50 x 150 mm
Nominal current
80 A
Datasheet (PDF)
Technical specifications
- Product type
Changeover
- Factory colour
Grey
- Number of pins
4
- Dim
(W x H x D) 100 x 50 x 150 mm
- Nominal current
80 A
- Nominal current - rounded value
80 A
- Content
1 pc(s)
- Width
100 mm
- Height
50 mm
- Depth
150 mm
- Weight
1000 g
0
0
80 A
4
380-415 V
50 kA
IP20
0
1
TRUE
FALSE
Screw connection
FALSE
Short thumb-grip
TRUE
TRUE
TRUE
36 kW
1.5 kA
Grey
TRUE
FALSE
FALSE
TRUE
FALSE
415 V
FALSE
FALSE
Built-in device fixed built-in technique
80 A
52 kW
TRUE
80
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3197786 Hager HIM408 Hager HIM408 4-pole switch 80A for top-hat rail / mounting plate Changeover Grey 4-pin 80 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3197786 Hager HIM408 Hager HIM408 4-pole switch 80A for top-hat rail / mounting plate Changeover Grey 4-pin 80 A 1 pc(s)
Description
4-pole load switch 80A for top hat rail / mounting plate. Modular 4-pin changeover according to DIN EN 60947-3, for switching under load of 2 low-voltage circuits. With safety isolation and 3 switch positions, I-0-II. Suitable for mounting on DIN rail or mounting plate.
