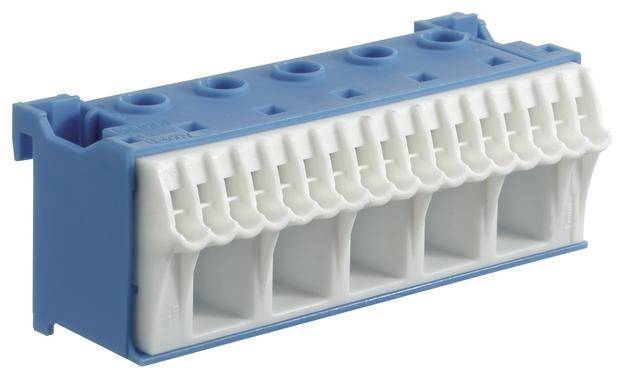

Hager KN22N KN22N Terminal flexible: 1.5-25 mm² fixed: 1.5-25 mm² Number of pins: 22 1 pc(s) Blue
EAN:
Part number:
Item no:
Product type
Terminal
Cross section (flexible) (min.)
1.5 mm²
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (min.)
1.5 mm²
Cross section (inflexible) (max.)
25 mm²
Datasheet (PDF)
Technical specifications
- Product type
Terminal
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
25 mm²
- Number of pins
22
- Factory colour
Blue
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Content
1 pc(s)
- Manufacturer part #
KN22N
- Connection
QUICKON connector
- Nominal voltage
230 V
63 A
230 V
Blue
- UKCA
yes
