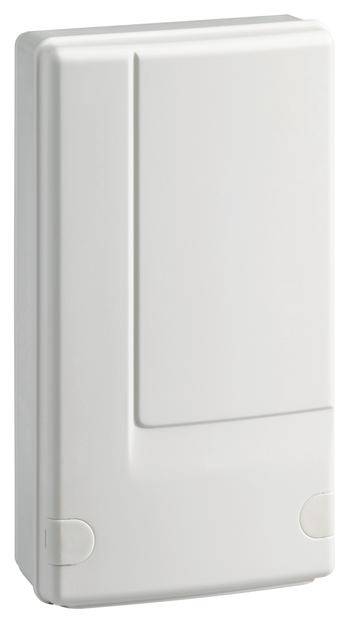

Hager KNX TRE202 Actuator 2-channel
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Radio protocol: KNX-radio
- Recipient Category: 2
- With KNX bus system: No.
- With KNX radio bus system: Yes
- Dimensions 35 x 85 mm
- Installation depth: 40 mm
- Colour: White
- With slider for manual control: Yes
- Wireless bidirectional: Yes
- Switching current: 10 A
- Frequency 50 - 50 Hz
- Wireless reception frequency 868.30 - 868.30 MHz
- 2300 W power output
- Operating voltage 230 230 V
- System voltage 230 V AC
- Function: Simple additional functions: + 6 scenes
- Repeater-Function for increasing the radio range can be activated
- Reset function (to factory settings)
- Connection type: With screw-lift terminals
- Product type
Actuator
- Series
KNX
- Transfer Standard (Smart Home)
FSK 868 MHz
- Max. switching capacity
2300 W
IP55
- Operating voltage
230 V AC
2300 W
- Data transfer (Smart Home)
Wireless
- Channels
2
- Frequency
868.3 MHz
- Mounting type
Surface-mount
- Factory colour
White
- Width
85 mm
- Height
35 mm
- Depth
40 mm
- Dim
(W x H x D) 85 x 35 x 40 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
- Weight
0
Surface mounted (plaster)
10 A
195-253 V
TRUE
TRUE
FALSE
FALSE
0
None
FALSE
IP55
TRUE
TRUE
TRUE
40
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3198119 Hager KNX TRE202 Actuator 2-channel
User & Safety Instructions
User & Safety Instructions 3198119 Hager KNX TRE202 Actuator 2-channel
Description
Wireless AP output 2-way IP55 10A, quick link. Wireless KNX AP output device IP55 for switching consumers in connection with Quicklink radio products as tool-free Quicklink configuration via buttons with LED display or integration via KNX radio Media coupler into the KNX-TP system. The device converts the switching information into bi-directional commands. Functions: Switching, scenes, time switching, button NO, forced control, Status indicator
