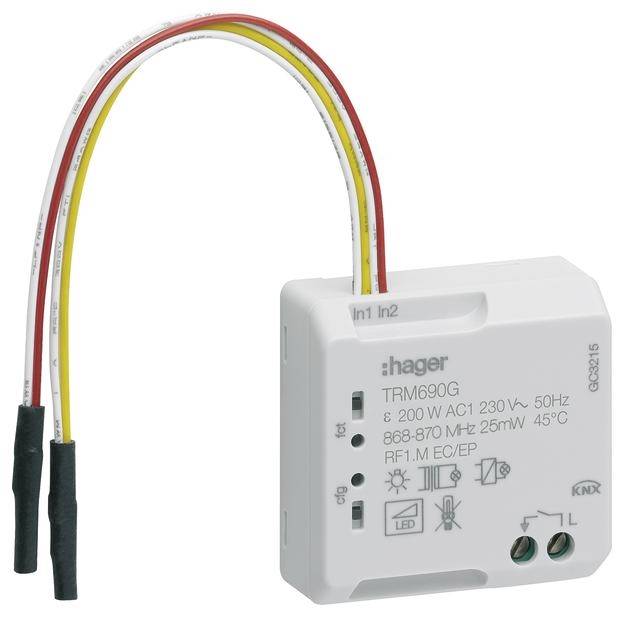

Hager KNX TRM690G Actuator
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Actuator
- Series
KNX
- Used at
Indoors
IP20
- Operating voltage
230 V
- Data transfer (Smart Home)
Wireless
- Channels
1
- Mounting type
Flush mount
- Width
100 mm
- Height
50 mm
- Dim
(L x W x H) 150 cm x 100 mm x 50 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
1000 g
- Features
No neutral wire required
- Length
150 cm
Flush mounted (plaster)
0.85 A
230-230 V
TRUE
FALSE
FALSE
TRUE
0
None
FALSE
IP20
TRUE
FALSE
TRUE
40
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3198433 Hager KNX TRM690G Actuator
User & Safety Instructions
User & Safety Instructions 3198433 Hager KNX TRM690G Actuator
Description
Radio UP switch actuator 1way/binary input 2way 230V 4A 2wire. KNX radio electronic switch actuator UP with screw-lift terminals for installation behind UP inserts. Quicklink (Push Button Mode) for tool-free configuration and function buttons with LEDs. With independent mains-supplied binary input for potential-free contact without neutral conductor connection, 4-wire line for control by e.g. switch/button/timer, call of the scenes via KNX-radio devices, saving of scenes (lockable), reset function (to factory settings). Quicklink functions: Switching, 2 scenes, time switching, button closer, forced control. Easy additional functions: +6 scenes. ETS additional functions: +6 scenes, operating mode on/off, 1 key control on/off, button,2 x alarm, status display. Note: Optional integration via KNX radio media coupler into the KNX-TP system.
