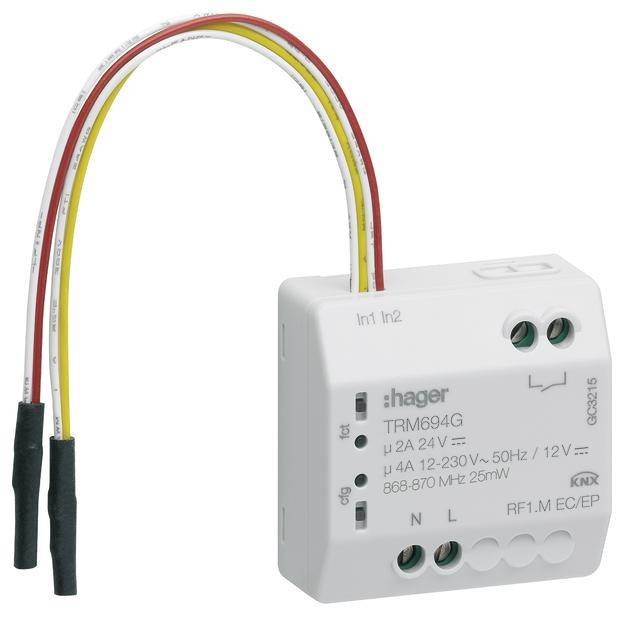

Hager KNX TRM694G Actuator
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Actuator
- Series
KNX
- Used at
Indoors
IP20
- Operating voltage
230 V AC
- Data transfer (Smart Home)
Wireless
- Channels
1
- Mounting type
Flush mount
- Height
20 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
0
- Features
No neutral wire required
Flush mounted (plaster)
4 A
230-230 V
TRUE
FALSE
FALSE
TRUE
0
None
FALSE
IP20
TRUE
FALSE
TRUE
40
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3198437 Hager KNX TRM694G Actuator
User & Safety Instructions
User & Safety Instructions 3198437 Hager KNX TRM694G Actuator
Description
Funk up switching actuator pot.frei 1fold/binary input 2FOLD 230V/4A 24VDC/4A 12VDC/2A. KNX radio switch actuator UP AC/DC with screw-lift terminals for installation behind UP inserts. Quicklink (Push Button Mode) for tool-free configuration and function buttons with LEDs. With independent mains-supplied binary input for potential-free contact without neutral conductor connection, 4-wire line for control via a key for example. Calling up the scenes via KNX radio devices, saving scenes (lockable), reset function (to factory settings). Quicklink functions: Switching, 2 scenes, time switching, button closer, forced control. Easy additional functions: +6 scenes. ETS additional functions: +6 scenes, operating mode on/off, 1 key control on/off, switch, 2 x alarm, Status indicator Note: Optional integration via KNX radio media coupler into the KNX-TP system.
