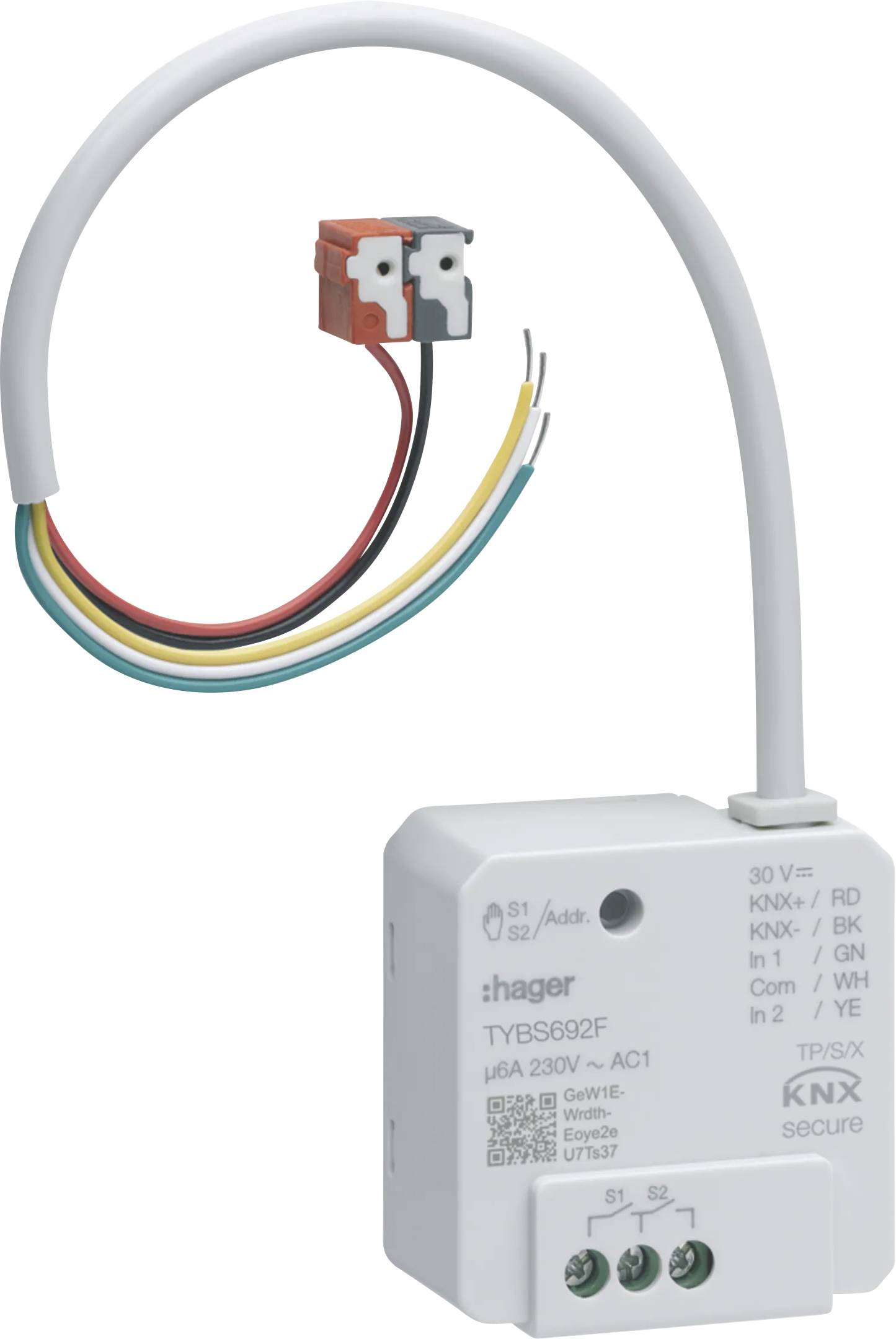

Hager KNX TYBS692F Actuator
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Actuator
- Series
KNX
- Max. switching capacity
500 W
- Used at
Internal
- Operating voltage
230 V
500 W
- Data transfer (Smart Home)
Wired
- Channels
2
- Mounting type
Flush mount
- Factory colour
Multicolour
- Width
100 mm
- Height
50 mm
- Depth
150 mm
- Dim
(W x H x D) 100 x 50 x 150 mm
- Hub
Not required, optional for remote access
- Weight
120 g
- Features
Signal input
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3360526 Hager KNX TYBS692F Actuator
User & Safety Instructions
User & Safety Instructions 3360526 Hager KNX TYBS692F Actuator
Description
Switch/blind output KNX, 2/1-way + 2 inputs, UP, 6A.Switch/blind actuator (UP) KNX Secure inputs for switching an independent load by a potential-free NO contact. Flush-mounted device with integrated bus coupler, bus connection via KNX connection terminal with pre-assembled line and programming/hand key with integrated LED.
Switch functions: ON / OFF, time switching, safety off, forced control, switching function for time or continuous function, operating hours counter, device diagnosis, lock/ logic/ preset/ delay or scene functions (64 scenes).
Functions Shutter/blind drive: UP/DOWN/stop, leaf position/stop, percentage control for driving a pre-defined position, sun protection function (e.g. via external sensor), alarm function for defined position, safety lock, device diagnosis, lock/logic/preset or scene functions (64 scenes).
Binary input functions: Switching (tools), switching, timer, shutter/blind, dimming, Heating, forced control, scene, alarm, automatic, Load shedding, tariff and window contact.
Note: Commissioning with easytool or ETS (as of version 4) is possible. Observe installation instructions for actuator manufacturers.
This text is machine translated.
Switch functions: ON / OFF, time switching, safety off, forced control, switching function for time or continuous function, operating hours counter, device diagnosis, lock/ logic/ preset/ delay or scene functions (64 scenes).
Functions Shutter/blind drive: UP/DOWN/stop, leaf position/stop, percentage control for driving a pre-defined position, sun protection function (e.g. via external sensor), alarm function for defined position, safety lock, device diagnosis, lock/logic/preset or scene functions (64 scenes).
Binary input functions: Switching (tools), switching, timer, shutter/blind, dimming, Heating, forced control, scene, alarm, automatic, Load shedding, tariff and window contact.
Note: Commissioning with easytool or ETS (as of version 4) is possible. Observe installation instructions for actuator manufacturers.
This text is machine translated.
