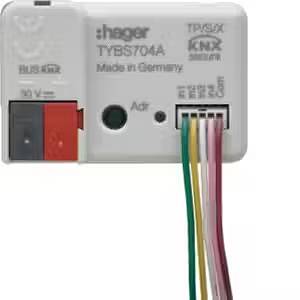

Hager KNX TYBS704A Binary input
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Binary input
- Series
KNX
- Operating voltage
3.3 V DC
9 W
- Data transfer (Smart Home)
Wired
- Channels
4
- Mounting type
Flush mount
- Factory colour
Multicolour
- Width
300 mm
- Height
200 mm
- Depth
400 mm
- Dim
(W x H x D) 300 x 200 x 400 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
- Weight
40 g
- Features
Signal input
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3358761 Hager KNX TYBS704A Binary input
User & Safety Instructions
User & Safety Instructions 3358761 Hager KNX TYBS704A Binary input
Description
Binary input 4-way, KNX Secure, UP.Binary input 4-way and 4 LED outputs (UP) KNX Secure as push-button interface for connection of buttons, switches or potential-free contacts. Flush-mounted device with integrated bus coupler, bus connection via KNX connection terminal, programming button with LED and pre-assembled connection cables.
Functions: Switch ON/OFF (send commands when pressing and/or releasing, time-shifted transmission possible), dimming and color temperature, UP/DOWN (1 or 2-button operation), temperature, brightness, dimming value, two-channel mode per input as well as recognition of short and long buttons and from this dependent parameter settings, transmission behavior and time threshold can be set. Lock function, forced control, scene call and periodic transmission can be parameterized, pulse counting and temperature measurement.
Note: Commissioning with easytool or ETS is possible.
This text is machine translated.
Functions: Switch ON/OFF (send commands when pressing and/or releasing, time-shifted transmission possible), dimming and color temperature, UP/DOWN (1 or 2-button operation), temperature, brightness, dimming value, two-channel mode per input as well as recognition of short and long buttons and from this dependent parameter settings, transmission behavior and time threshold can be set. Lock function, forced control, scene call and periodic transmission can be parameterized, pulse counting and temperature measurement.
Note: Commissioning with easytool or ETS is possible.
This text is machine translated.
