Hager KNX WDI101 Touchscreen module
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Touchscreen module
- Series
KNX
- Used at
Indoors
IP20
- Operating voltage
24 V DC
- Data transfer (Smart Home)
Wired
- Mounting type
Flush mount
- Factory colour
Anthracite
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3198386 Hager KNX WDI101 Touchscreen module
User & Safety Instructions
User & Safety Instructions 3198386 Hager KNX WDI101 Touchscreen module
Description

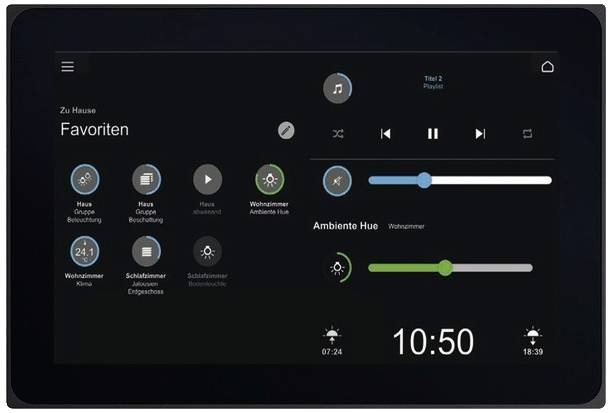

Touch Panel PC 10" Windows. Multi-touch panel with capacitive TFT 10 inch color display with continuous glass front and wide-screen in the format 16:9, WXGA 1280 x 800 resolution for flush mounting and installation with wall attachment of 10 mm, as well as very silent, long-life convection cooling without fans. Variable display- sleep function adjustable. Used to display pre-configured functions, measurements, and data on a 10-inch display for horizontal domovea visualization. Further application for IP-door communication via integrated microphone and loudspeakers with echo suppression for domovea. Win7 embedded operating system pre-installed and 2GB RAM with an additional internal memory of 64 GB SSD. The touch panel has two RJ45 connectors , as well as 2 USB 2.0 connectors on the rear and an RS232 interface. Without dismantling attainable mini-USB 2.0 socket e.g. for external storage media or updates on top display edge. Power supply via 24 VDC. A USB/USB mini is also included in delivery.
