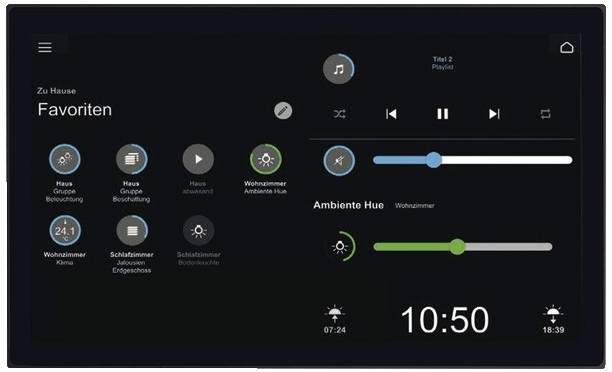

Hager KNX WDI161 Touchscreen module WDI161

Touch Panel PC 16" Windows. Multi-touch panel with capacitive TFT 16 inch color display with continuous glass front and wide-screen in the format 16:9, WXGA 1366x768 resolution for flush mounting and installation with wall attachment of 10 mm, as well as very noiseless, long-lasting convection cooling without fans. Variable display Sleep function adjustable. Used to display pre-configured functions, measurements, and data on a 16-inch display for horizontal domovea visualization. Further application for IP-door communication via integrated microphone and loudspeakers with echo suppression for domovea. Win7 embedded operating system pre-installed and 2GB RAM with an additional internal memory of 32 GB SSD. The touch panel has two RJ45 connections, as well as 2 USB 2.0 connections on the rear and an RS232 interface. Without dismantling attainable mini-USB 2.0 socket e.g. for external storage media or updates on top display edge. Power supply via 24 VDC. A USB/USB mini is also included in delivery.
