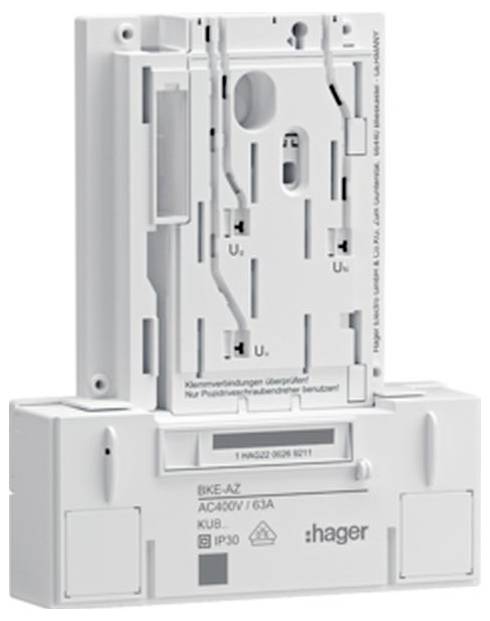

Hager KU83LHE BKE adapter White 63 A 1 pc(s)
Product type
BKE adapter
Type
Closed and pre-punched
Factory colour
White
Dim
(L x W x H) 200 cm x 179 mm x 255 mm
Nominal current
63 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
Closed and pre-punched
- Product type
BKE adapter
- Factory colour
White
- Dim
(L x W x H) 200 cm x 179 mm x 255 mm
- Nominal current
63 A
- Nominal current - rounded value
63 A
- No. of partitions
1
- Type
Electronic household meter (eHZ)
- Content
1 pc(s)
- Width
179 mm
- Height
255 mm
- Length
200 cm
- Depth
200 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3819301 Hager KU83LHE BKE adapter White 63 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3819301 Hager KU83LHE BKE adapter White 63 A 1 pc(s)
Description
BKE-A, 3-phase fixing and contacting device for electronic household meters (eHZ), VDE-certified according to DIN VDE 0603-3-2. For copper conductor 4-25 mm², rigid/fine-wired. Rated current 63 Ampere, continuous operating current 32/44/50 Ampere. Mounting dimensions: 179 mm width, 221 mm height, 107 mm depth. Additional terminals for voltage tapping and security through socket lock.
