Hager LFH6011007035 Cable trunking (L x W x H) 2000 x 110 x 60 mm 2 m Grey
EAN:
Part number:
Item no:
Technical specifications
- Product type
Cable trunking
- Content
2 m
- Factory colour
Grey
- Dim

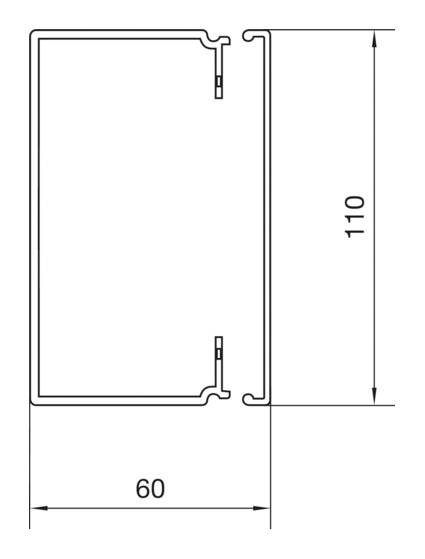

(L x W x H) 2000 x 110 x 60 mm
- Length
2000 mm
- Width
110 mm
- Height
60 mm
Grey
110
TRUE
60 mm
7035
Untreated
Other
2000 m
Plastic
Bottom perforation
0
3
TRUE
TRUE
5460 mm²
FALSE
FALSE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2814904 Hager LFH6011007035 Cable trunking (L x W x H) 2000 x 110 x 60 mm 2 m Grey
Description

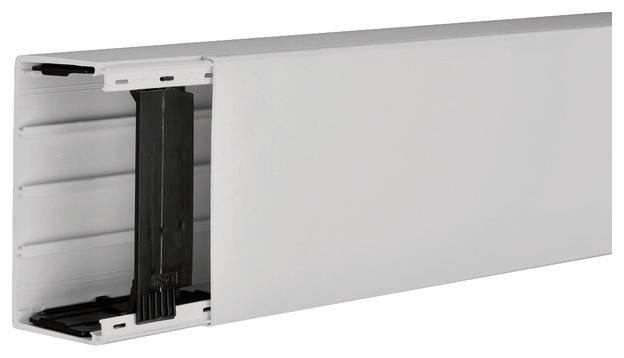

Cable guide channel from PC/ABS halogen-free LFH 60x110mm light gray. Electro-installation channel system Cable guide channel made of halogen-free plastic according to DIN EN 50085-1 for cable laying. Halogen-free plastic is flame resistant and developed in connection with moisture, for example Extinguishing water, no corrosive combustion gases. As such, electronic devices and objects are better protected. Channel lower part/upper part with partition installation option, can be snapped in, with pre-punched holes at a distance of 125 mm, from size 40 x 60 mm with pre-assembled couplings for easy alignment in case of one-man installation and with pre-assembled adjustable retention clamps. Note: Sound and fire protection measures must be carried out in a professional manner.
