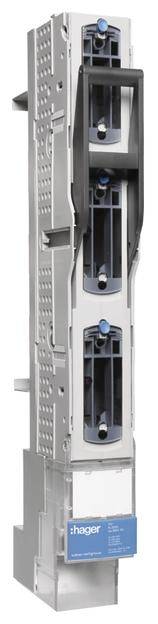

Hager LVS0060SPX Hager LVS0060SPX, circuit breaker NH00 60mm 3-pin M8 Circuit breaker switch module 3-pin 160 A 690 V 1
EAN:
Part number:
Item no:
Product type
Circuit breaker switch module
Nominal voltage
690 V
Number of pins
3
Nominal current
160 A
Nominal current - rounded value
160 A
Datasheet (PDF)
Technical specifications
- Nominal voltage
690 V
- Product type
Circuit breaker switch module
- Number of pins
3
- Nominal current
160 A
- Nominal current - rounded value
160 A
- Content
1 pc(s)
Fuse switch disconnector
160 A
3
100 kA
Screw connection
690 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3197994 Hager LVS0060SPX Hager LVS0060SPX, circuit breaker NH00 60mm 3-pin M8 Circuit breaker switch module 3-pin 160 A 690 V 1
User & Safety Instructions
User & Safety Instructions 3197994 Hager LVS0060SPX Hager LVS0060SPX, circuit breaker NH00 60mm 3-pin M8 Circuit breaker switch module 3-pin 160 A 690 V 1
Description
NH Safety fuse load bar LV NH00 60mm 3-pin M8 NH00-Fuse-Load bar 160 A, for Busbar mounting distance 60 mm. Complies with DIN EN 60947-3 and IEC 60947-3, suitable for NH fuse links as per DIN 43620-1. Consists of 3-pin conductor lower section and lead-sealable handle insert, touch protection on the handle, with movable clear window for voltage test, all poles switched, with universal connector M8 screw, with rotating mounting hook
