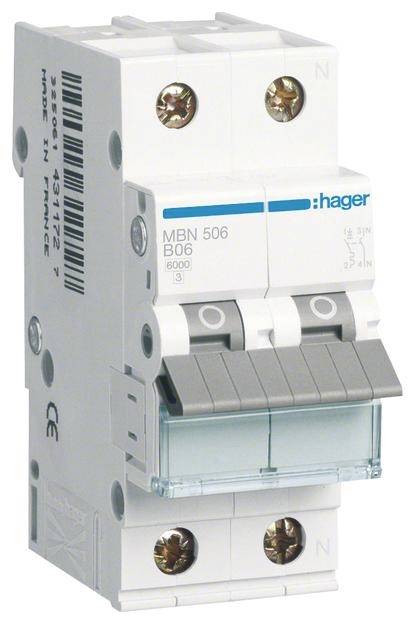

Hager MBN506 MBN506 Circuit breaker 2-pin 6 A 230 V
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
2
Nominal current - rounded value
6 A
Nominal current
6 A
Dim
(W x H x D) 85.0000 x 35.0000 x 73.0000 mm
Datasheet (PDF)
Technical specifications
- Product type
Circuit breaker
- Number of pins
2
- Nominal current - rounded value
6 A
- Nominal current
6 A
- Dim
(W x H x D) 85.0000 x 35.0000 x 73.0000 mm
- Content
1 pc(s)
- Nominal voltage
230 V
- Width
85.0000 mm
- Height
35.0000 mm
- Depth
73.0000 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3199007 Hager MBN506 MBN506 Circuit breaker 2-pin 6 A 230 V
User & Safety Instructions
User & Safety Instructions 3199007 Hager MBN506 MBN506 Circuit breaker 2-pin 6 A 230 V
Description
Circuit breaker switch 1P+N 6kA B-Characteristic 6A 2 Modules. Line circuit breaker in accordance with DIN EN 60898-1 (VDE 0641-11) with time-delay thermal trigger for overload protection and electromagnetic trigger for short-circuit protection. Suitable for add-on installation of additional devices. Labelling possibility directly at the device and individual removal from the phase-rail network by unlocking the top-hat rail quick mounting.
